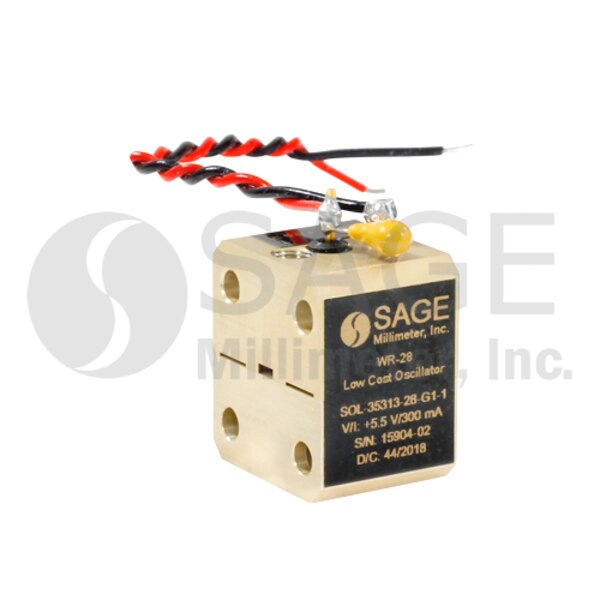

Ka-Band Volume Production Oscillator

35 GHz, ±3.00 GHz Tuning Bandwidth, +12 dBm Output Power, WR-28 Waveguide
SKU:SOL-35312-28-G1-2
Availability:2 to 3 Weeks ARO
SOL-35312-28-G1-2 is a volume-production ready, Ka Band Gunn oscillator that utilizes a high performance GaAs Gunn diode and high Q cavity to achieve excellent phase noise and power stability. The oscillator is designed for fixed frequency applications, however, the frequency can be adjusted by ±3.0 GHz using the self-locking set screw provided.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Center Frequency35 GHz
Output Power+12 dBm
Mechanical Tuning Range±3000 MHz
Varactor Tuning Range-
Phase Noise-95 dBc/Hz @ 100 KHz offset
Bias+5.5 VDC/250 mA
Varactor Tuning Voltage Range-
RF PortWR-28 Waveguide
