Ka-Band Dual Channel Long Range Speed Sensor Heads

35 GHz,+20 dBm Transmitting Power, 22 dBi Antenna Gain
SKU:SSS-35320-22L-D1
Availability:1 Week ARO

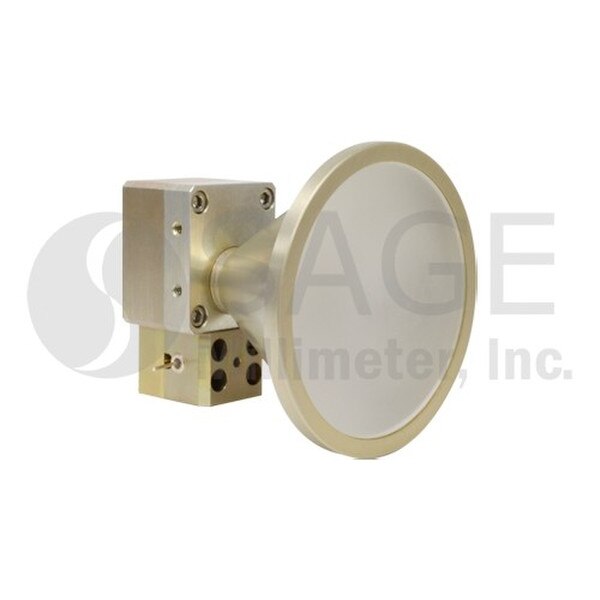

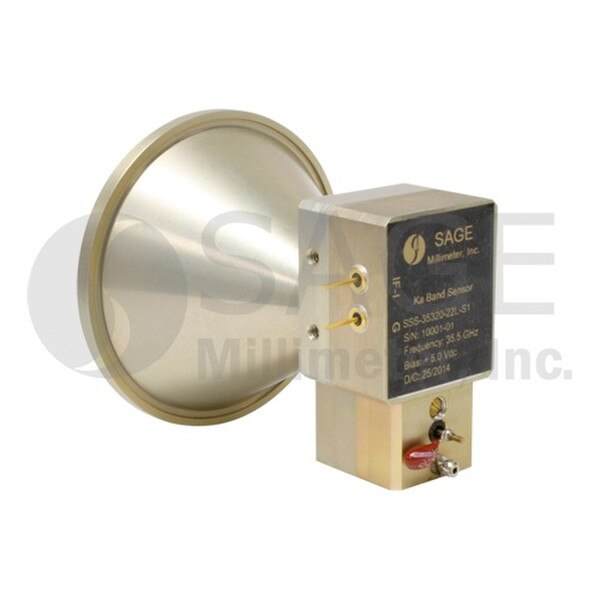

SSS-35320-22L-D1 is a Ka Band, lens antenna-based Doppler sensor head that is designed and manufactured for long range measurements of a moving target's speed and direction. The sensor head has a center frequency of 35 GHz and takes a nominal bias of +5.0 VDC/650 mA. The sensor heads are configured with a lens corrected antenna, T/R diplexer, a dual channel (I/Q) receiver and a transmitter/receiver oscillator in an integrated package. Sensor heads with a single receiver are offered under model number SSS-35320-22L-S1 and can only detect the speed of a moving target.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 9$740.00
10 - 24$666.00
25 - 49$599.40

Bulk Pricing

Login to View Pricing

Technical Details

RF Center Frequency35 GHz
TX Power+20 dBm
Antenna Gain22 dBi
3 dB BW (H x V)12° x 12°
PolarizationRH Circular
DC Bias+5 VDC/650 mA
ChannelDual
RangeLong
