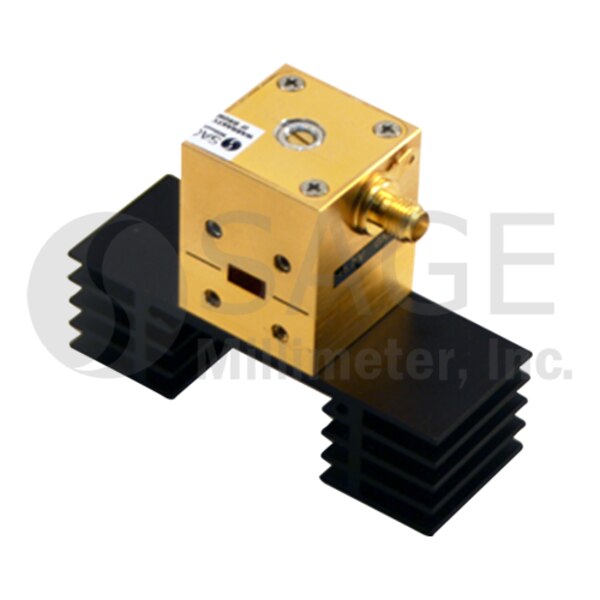

Ka-Band Mechanically Tuned Gunn Oscillator

35 GHz, ±2.00 GHz Tuning Bandwidth, +13 dBm Output Power, WR-28 Waveguide
SKU:SOM-35304313-28-S1
SOM-35304313-28-S1 is a Ka-Band, mechanically tuned Gunn oscillator that utilizes a high performance GaAs Gunn diode and proprietary cavity design to deliver +13 dBm typical power. The oscillator features a frequency tuning range of 33 to 37 GHz and delivers low AM/FM noise and harmonic emissions. Compared to its counterparts, such as multiplier based sources, the Gunn oscillator is a lower cost and cleaner source. The Gunn oscillator's frequency can also be tuned by varying the bias voltage, which is useful for phase-locking and electrical-tuning applications. The Gunn oscillator is equipped with a self-locking set screw for frequency trimming. Models with a micrometer for lab and test bench applications are available under a different model number. The performance of the oscillator can be further enhanced by adding an optional isolator, Gunn oscillator modulator/regulator and temperature heater.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Center Frequency35 GHz
Output Power+13 dBm
Mechanical Tuning Range±2000 MHz
Bias Tuning Range (+4.5 to +5.5 VDC)±10 MHz
Bias+4.5 VDC/250 mA
RF PortWR-28 Waveguide
Mechanical TuningSelf-Locking Set Screw
