Ka-Band Dual Channel, Long Range Ranging Sensor Heads

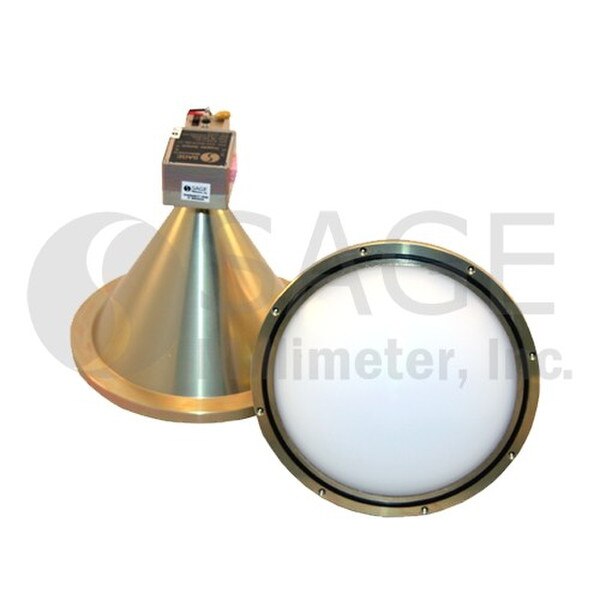

SSD-35300-29L-D1 is a Ka Band, lens antenna-based ranging sensor head that is designed and manufactured for long range measurements of a moving or stationary target's range, speed and direction. The sensor head has a center frequency of 35 GHz and takes a nominal bias of +5.0 VDC/250 mA. The frequency modulation bandwidth of ±75 MHz minimum is realized via a tuning voltage of 0 to +20 Volts. The sensor heads are configured with a lens corrected antenna, T/R diplexer, a dual channel (I/Q) receiver and a transmitter/receiver oscillator in an integrated package. Sensor heads with a single receiver are offered under model number SSD-35300-29L-S1 and can only detect the range and speed of a target.
