WR-22 Waveguide Highpass Filter

35.5 GHz and Higher Passband, 30 dB Rejection from DC to 30.5 GHz, Q-Band
SKU:SWF-32332330-22-H1
Availability:IN STOCKPlease contact us if you need more units than what is available online.

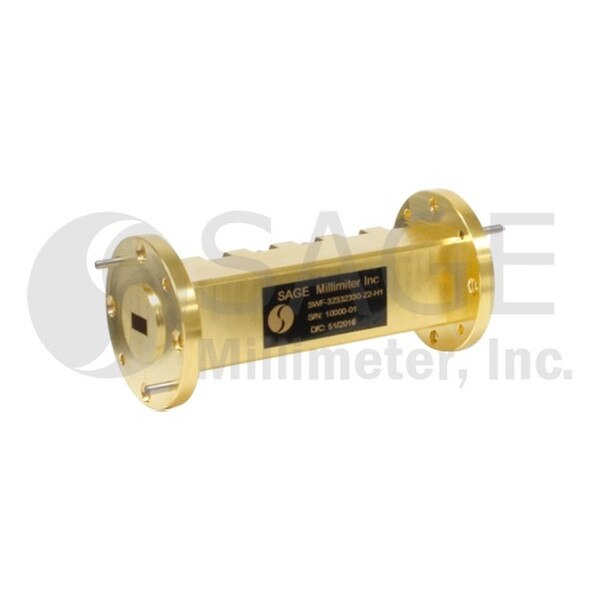

SWF-32332330-22-H1 is a Q band, waveguide highpass filter with a passband frequency of 35.5 GHz and higher and a rejection frequency from DC to 30.5 GHz. The filter provides a nominal insertion loss of 1.0 dB across its passband with a low ripple and a typical rejection of 30 dB. Since the low end cutoff frequency can be changed by modifying the design, custom designs can be offered under different model numbers. For quantities above 10 pieces, please contact us or call (424) 757-0168.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Passband Frequency35.5 GHz
Passband Insertion Loss1.0 dB
Minimum Rejection FrequencyDC
Maximum Rejection Frequency30.5 GHz
Rejection30 dB
Waveguide PortWR-22 Waveguide
