Ka-Band Mechanically Tuned Gunn Oscillator

34 GHz, ±4.00 GHz Tuning Bandwidth, +18 dBm Output Power, WR-28 Waveguide

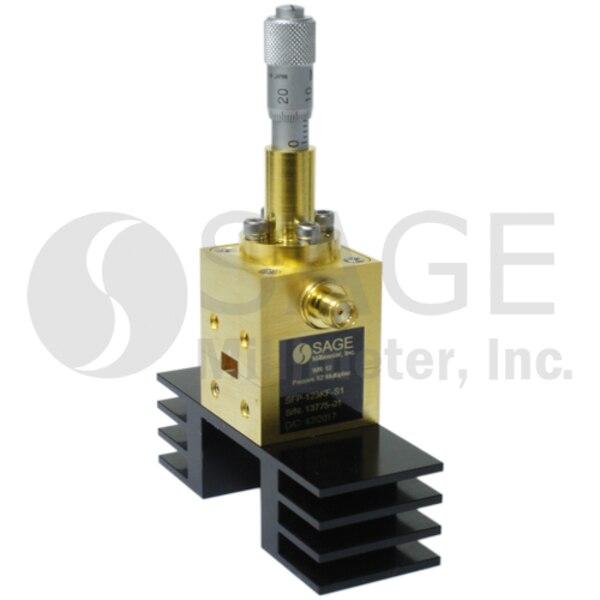

SOM-34308320-28-M1 is a Ka-Band, wide mechanical tuning bandwidth Gunn oscillator that utilizes a high-performance GaAs Gunn diode and proprietary cavity design to deliver +18 dBm typical power with low AM/FM noise and harmonic emissions. The oscillator has a center frequency of 34 GHz and a mechanical tuning range of ±4 GHz. Compared to its multiplier based counterparts, the Gunn oscillator is a lower cost alternative and a cleaner source. The Gunn oscillator is equipped with a micrometer for quick frequency tuning when used as a bench top unit. Models with a self-locking set screw for frequency tuning are available under a different model number for use in system integration applications. The performance of the oscillator can be further enhanced by adding an optional integrated isolator, Gunn oscillator modulator/regulator, and temperature heater.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Center Frequency34 GHz
Output Power+18 dBm
Mechanical Tuning Range±4 GHz
Bias Tuning Range-
Bias+5.0 VDC/850 mA
RF PortWR-28 Waveguide
Mechanical TuningMicrometer
