Ka-Band Dual Channel Medium Range Speed Sensor Heads

34.3 GHz, -3 dBm Transmitting Power, 28 dBi Antenna Gain
SKU:SSS-34300-28L-D1
Availability:1 Week ARO

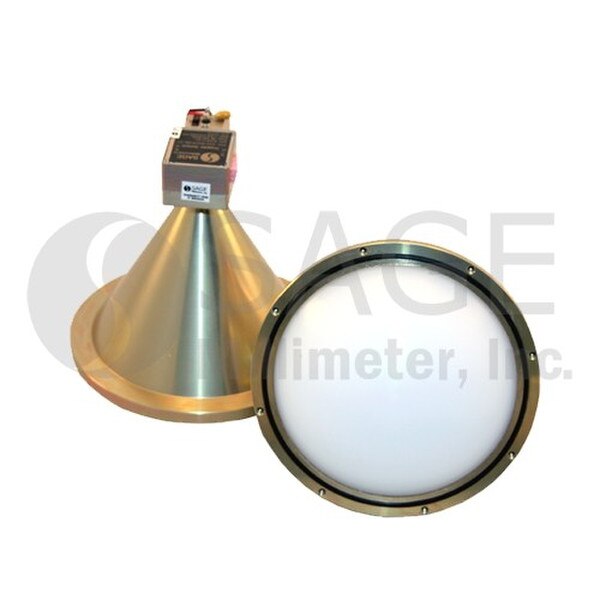

SSS-34300-28L-D1 is a Ka Band, Doppler sensor head that is designed and manufactured for measurements of a moving target's speed and direction. The sensor module has a center frequency of 34.3 GHz and takes a nominal bias of +5.0 VDC/350 mA. The sensor module is configured with a T/R diplexer, a dual channel (I/Q) receiver and a transmitter/receiver oscillator in an integrated die-cast housing. The sensor supports circular polarized waveform. Sensor modules with a single receiver are offered under model number SSS-34300-28L-S1 and can only detect the speed of a moving target.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 9$650.00
10 - 24$585.00
25 +$526.50

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

RF Center Frequency34.3 GHz
TX Power-3 dBm
Antenna Gain28 dBi
3 dB BW (H x V)5° x 5°
PolarizationRH Circular
DC Bias+5 VDC/350 mA
ChannelDual
RangeLong
