WR-22 Waveguide Shim

33 to 55 GHz, 0.092" (L) Insertion Length, 92 Mils, 1/4 λg
SKU:SWI-22092-SB
Availability:IN STOCKPlease contact us if you need more units than what is available online.

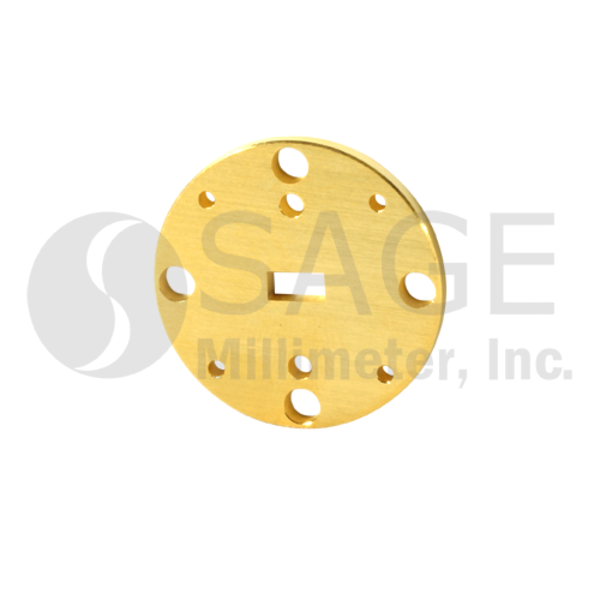

The WR-22 waveguide shim, SWI-22092-SB, is a 0.092” thick, 1/4 wavelength, instrumentation grade Q Band waveguide spacer (shim) with WR-22 window and UG-383/U circular flange. The spacer is manufactured with a precision machining process to ensure high quality and ruggedness. The WR-22 waveguide shim is offered to cover the frequency range of 33 to 50 GHz.

ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 24 $165.00
25 - 49 $148.50
50 - 99 $133.65

Bulk Availability

QuantityAvailability
1 - 4In Stock

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency33 GHz
Maximum Frequency50 GHz
Insertion Length0.092" (L)
Mil92
WaveguideWR-22 Waveguide
