WR-22 Waveguide Shim

33 to 55 GHz, 0.046" (L) Insertion Length, 46 Mils, 1/8 λg
SKU:SWI-22046-SB
Availability:IN STOCKPlease contact us if you need more units than what is available online.

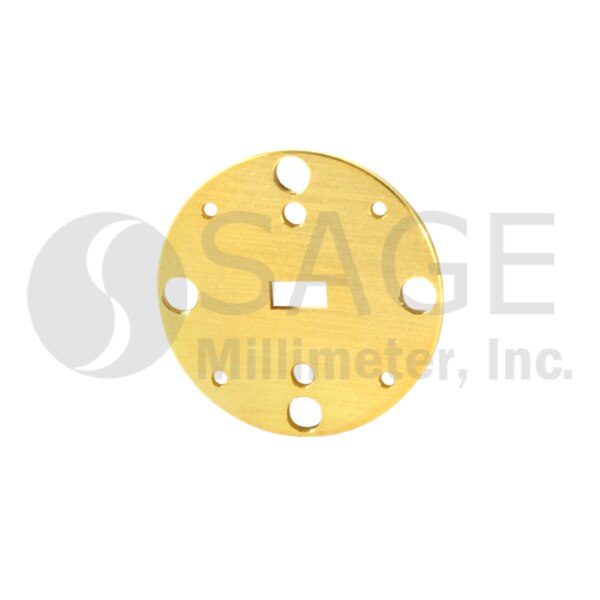

SWI-22046-SB is a 0.046" thick, 1/8 wavelength, instrumentation grade Q Band waveguide spacer (shim) with WR-22 window and UG-383/U circular flange. The spacer is manufactured with a precision machining process to ensure high quality and ruggedness. The spacer is offered to cover the frequency range of 33 to 50 GHz.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 24 $165.00
25 - 49 $148.50
50 - 99 $133.65

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency33 GHz
Maximum Frequency50 GHz
Insertion Length0.046" (L)
Mils46
WaveguideWR-22 Waveguide
