Q-Band Noise Figure and Gain Test Extenders

33 to 50 GHz, WR-22 Waveguide
SKU:STG-22-S1
Availability:6 to 8 Weeks ARO

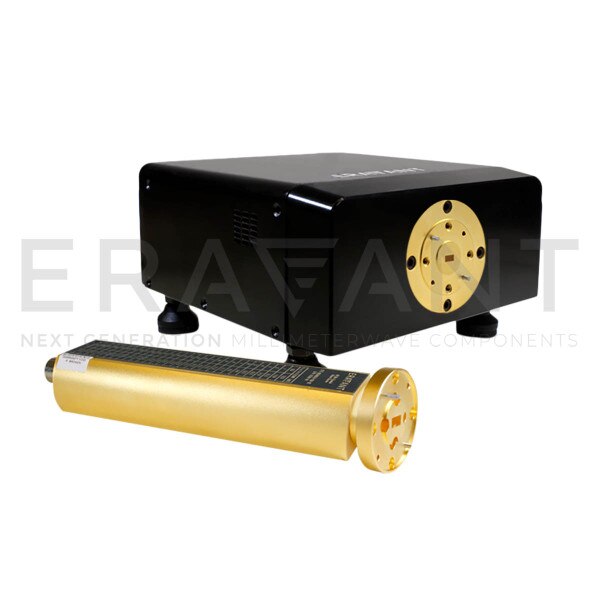

STG-22-S1 is a full Q-Band noise figure and gain test extender that extends the noise and gain measurement capabilities of common and low frequency signal synthesizers and noise figure meters to the frequency range of 33 to 50 GHz. This extender is designed to interface with industry standard noise and gain test systems, such as Keysight 8970A/B, N8973A, and N8975A/B. It can also interface with any noise and gain analyzers in the 10 MHz to 1.6 GHz frequency range.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 $20,000.00
2 $19,000.00
3 - 4 $18,050.00

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum RF Frequency33 GHz
Maximum RF Frequency50 GHz
Noise Source ENR13 dB
Down-converter Minimum IF Frequency10 MHz
Down-converter Maximum IF Frequency1.6 GHz
Down-converter Gain20 dB
Down-converter Noise Figure9 dB
Down-converter Bias+12 VDC/1250 mA
RF PortWR-22 Waveguide
