Q-Band Up-Converter

33 to 50 GHz RF Output, DC to 18 GHz IF Input, WR-22 Waveguide
SKU:STV-00-22-S1

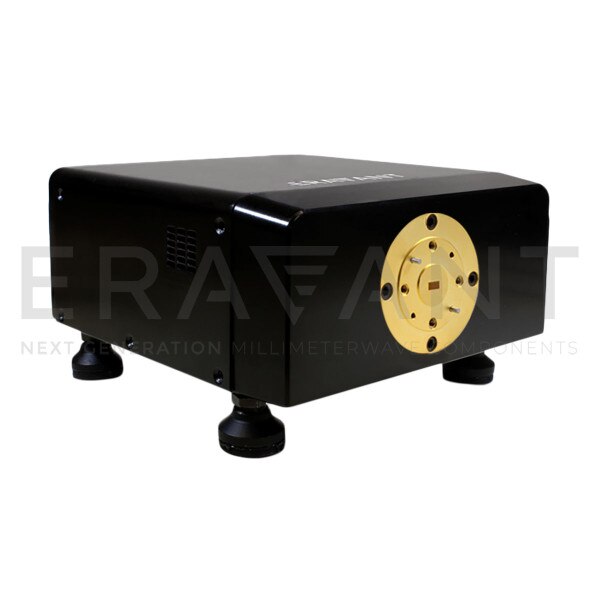

STV-00-22-S1 is a Q-Band up-converter that converts IF signals from a frequency range of DC to 18 GHz with -5 dBm power to the millimeterwave frequency at 33 to 50 GHz. The up-converter requires 8.25 to 12.5 GHz at +5 dBm input power as its LO, which can be obtained from a standard 20 GHz synthesizer, such as Eravant model SOT-02220313200-SF-B6. The up-converter has low harmonic levels and excellent gain flatness, making it a good candidate to extend low frequency test equipment fro millimeterwave testing purposes.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 $6,650.00
2 $6,317.50
3 - 4 $6,001.63

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum RF Frequency33 GHz
Maximum RF Frequency50 GHz
Minimum IF FrequencyDC
Maximum IF Frequency18 GHz
Minimum LO Frequency8.25 GHz
Maximum LO Frequency12.5 GHz
RF PortWR-22 Waveguide
