Q-Band DPDT Motorized Switch

33 to 50 GHz, 60 dB Isolation, WR-22 Waveguide
Availability:IN STOCKPlease contact us if you need more units than what is available online.

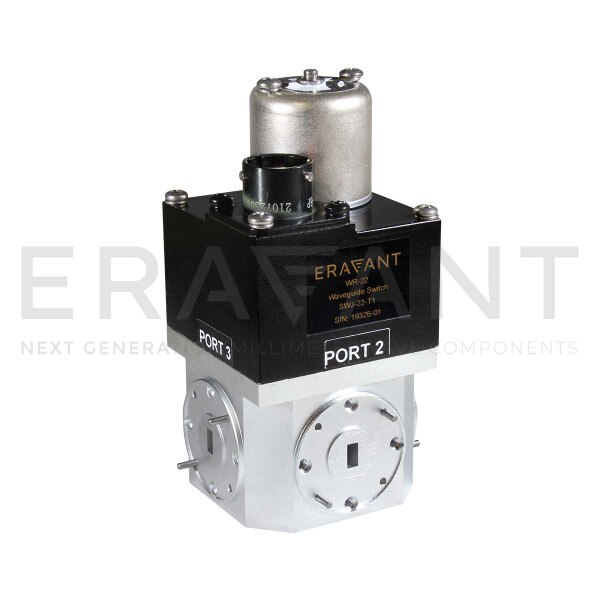

SWJ-22-T1 is a WR-22 motorized double pole, double throw (DPDT) transfer switch with a TTL driver that covers the frequency range of 33 to 50 GHz. It is an E-plane, bidirectional switch that has four ports which allows each port to be switched on and off between the adjacent ports. The typical insertion loss is 0.2 dB and the typical isolation is 60 dB. The RF ports are WR-22 waveguides with UG-383/U anti-cocking flanges. The bias and control signal is supplied by a standard MS3112E10-6P type connector.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency33 GHz
Maximum Frequency50 GHz
Insertion Loss0.2 dB
Isolation60 dB
Return Loss25 dB
Bias±28 VDC/250 mA
Switching Speed125 mS
Power Handling100 W (CW)
RF PortsWR-22 Waveguide
