3-Port Directional Coupler

33 to 50 GHz, 6 dB Coupling, 40 dB Directivity, WR-22 Waveguide, Q-Band
SKU:SWD-0640H-22-SB
Availability:1 Week ARO

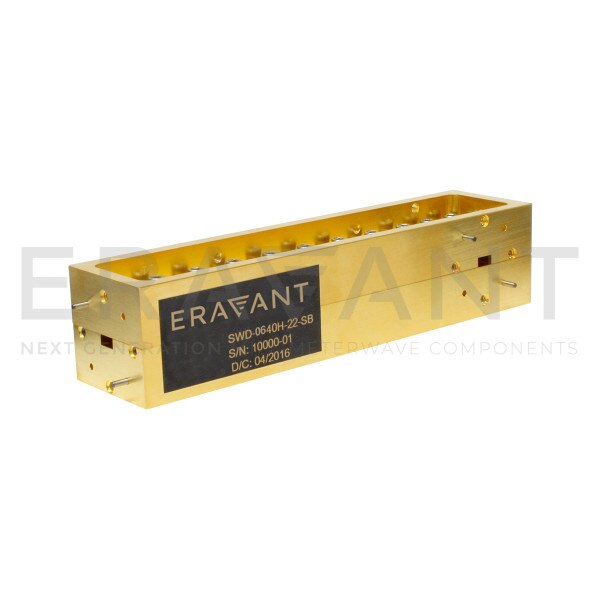

SWD-0640H-22-SB is a Q band, three-port waveguide directional coupler that delivers a 6 dB nominal coupling level and 35 dB minimum directivity across the full waveguide band from 33 to 50 GHz. The three-port coupler uses a traditional multi-hole and split block design to achieve a flat coupling level, high directivity, and low insertion loss. The interfaces of the coupler are WR-22 waveguides with UG-383/U flanges. Other coupling levels are available under different model numbers.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 4$1,050.00
5 - 9$945.00
10 - 24$850.50

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency33 GHz
Maximum Frequency50 GHz
Insertion Loss0.6 dB
Coupling6 dB
Directivity40 dB
VSWR1.1
Coupler Type3-Port Multi-hole, Split-block
RF PortsWR-22 WG
