4-Port Bi-directional Directional Coupler

33 to 50 GHz, 6 dB Coupling, 40 dB Directivity, WR-22 Waveguide, Q-Band
SKU:SWD-0640H-22-BB
Availability:2 to 3 Weeks ARO

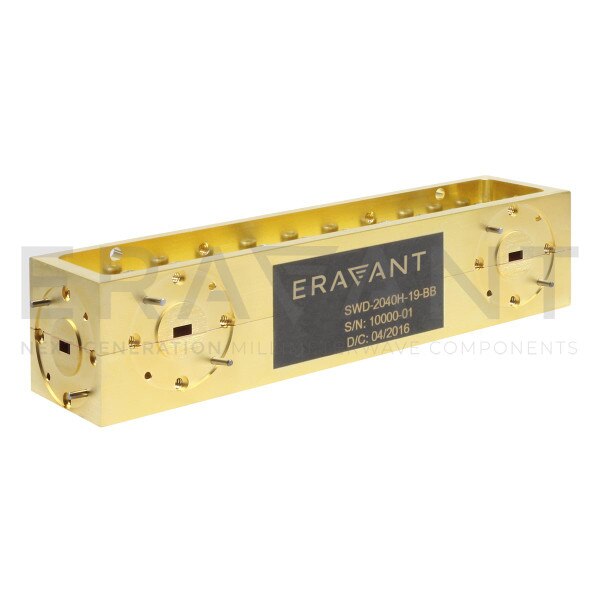

SWD-0640H-22-BB is a Q band, four-port waveguide bi-directional coupler that delivers a 6 dB nominal coupling level and 35 dB minimum directivity across the full waveguide band from 33 to 50 GHz. The bi-directional coupler uses a traditional multi-hole and split block design to achieve a flat coupling level, high directivity, and low insertion loss. The interfaces of the coupler are WR-22 waveguides with UG-383/U flanges. Other coupling levels are available under different model numbers.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 4$1,050.00
5 - 9$945.00
10 +$850.50

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Frequency33 GHz
Maximum Frequency50 GHz
Insertion Loss0.6 dB
Coupling6 dB
Directivity40 dB
VSWR1.1
Coupler Type4-Port Bi-directional, Split-block
RF PortsWR-22 WG
