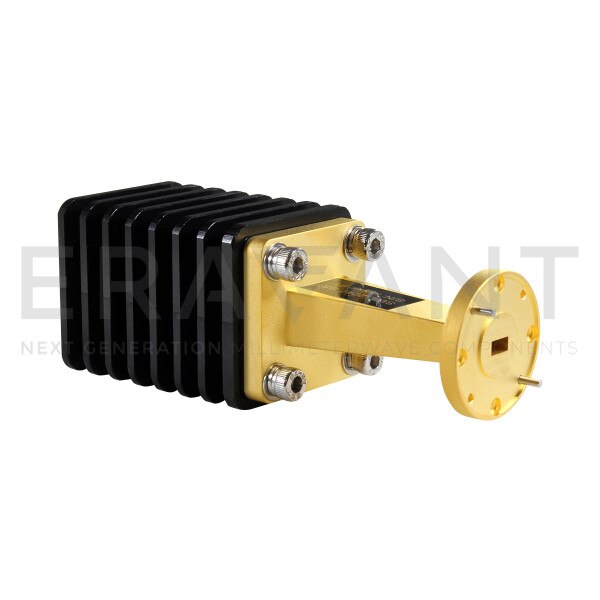

Q-Band Fixed Termination Load

33 to 50 GHz, 50 W Power Handling, WR-22 Waveguide
SKU:SWL-2247-S8
SWL-2247-S8 is a high power, Q-Band termination load that covers the frequency range of 33 to 50 GHz. The termination load exhibits a typical return loss of 25 dB and 50 Watts power handling capacity. It is designed and manufactured to offer a good match for high power test lab and system applications. Custom levels of power handling are offered under different model numbers.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency33 GHz
Maximum Frequency50 GHz
Power Handling, Watts50 W
Power Handling, dBm47 dBm
Return Loss25 dB
Load TypeFixed
Waveguide PortWR-22 Waveguide
