Q-Band Magic Tee

33 to 50 GHz, 30 dB Sum and Difference Port Isolation, 20 dB Collinear Port Isolation, WR-22 Waveguide
SKU:SWM-33350320-22-SB
Availability:IN STOCKPlease contact us if you need more units than what is available online.

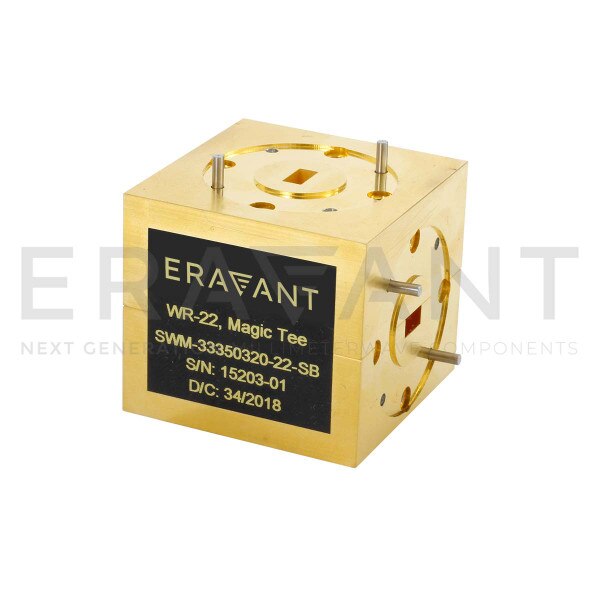

SWM-33350320-22-SB is a Q band magic tee that covers the frequency range of 33 to 50 GHz. This magic tee is a four-port hybrid coupler and/or power divider with two collinear arms, an E-plane (difference) arm and an H-plane (sum) arm. The magic tee offers a 0.3 dB nominal insertion loss and high isolation between the two collinear arms and between the sum and difference arms. All waveguide ports have standard WR-22 waveguides with UG-383/U flanges.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 9 $820.00
10 - 24 $738.00
25 - 49 $664.20

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency33 GHz
Maximum Frequency50 GHz
Insertion Loss0.30 dB
Isolation, Sum and Difference Ports30 dB
Isolation, Collinear Ports20 dB
VSWR1.5
Magic Tee TypeSplit-Block
Sum and Difference PortsWR-22 WG
Collinear PortsWR-22 WG
