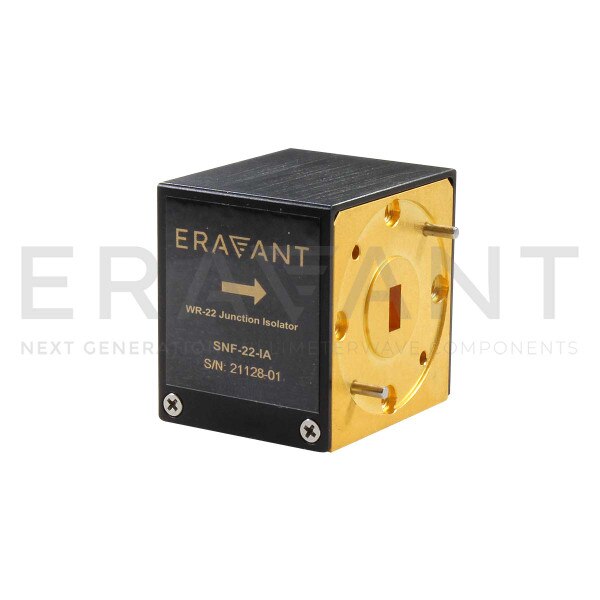

Full Band Junction Isolator

33 to 50 GHz, 12 dB Isolation, WR-22 Waveguide, Q-Band
SKU:SNF-22-IA
SNF-22-IA is a full Q band, waveguide junction isolator that covers the frequency range of 33 to 50 GHz. The full waveguide band isolator is designed and manufactured to provide a low insertion loss of 0.6 dB with good flatness. The circulator also offers a moderate isolation of 12 dB for system integration. The input and output ports are WR-22 waveguides with UG-383/U anti-cocking flanges.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 4 $1,250.00
5 - 9 $1,125.00
10 - 24 $1,012.50

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency33 GHz
Maximum Frequency50 GHz
Insertion Loss0.60 dB
Isolation12 dB
Return Loss12 dB
Forward Power Handling5 W
Reverse Power Handling1 W
RF PortWR-22 Waveguide
Device TypeIsolator
