WR-22 Waveguide Shim

33 to 50 GHz, 0.046" (L) Insertion Length, 46 Mils
SKU:SWI-22046-SB-599
Availability:Contact Us for Quote

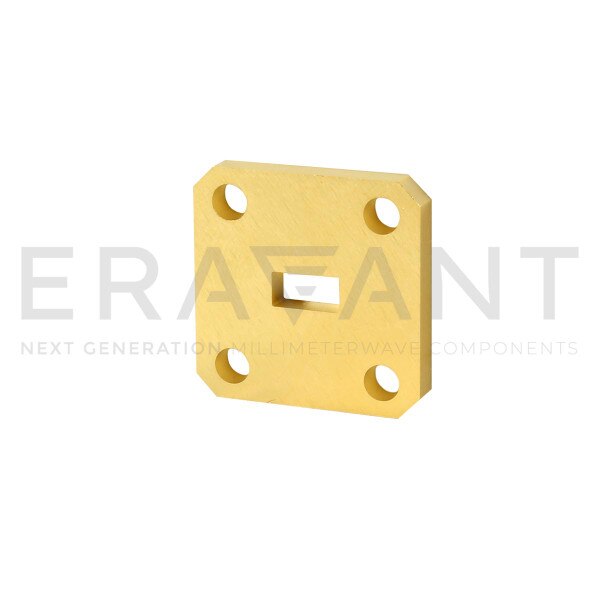

SWI-22046-SB-599 is a 0.046” thick, 1/8 wavelength, instrumentation grade Q Band waveguide spacer (shim) with WR-22 waveguide and UG-599/U style square flange. The spacer is manufactured with a precision machining process to ensure high quality and ruggedness. The spacer is offered to cover the frequency range of 33 to 50 GHz.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency33 GHz
Maximum Frequency50 GHz
Insertion Length0.046" (L)
Mils46
WaveguideWR-22 Waveguide
