Q-Band Power Amplifier with Uni-Guide™

33 to 40 GHz, 35 dB Gain, +25 dBm P1dB, 2.92 mm (F), WR-22 Waveguide
SKU:SBP-3334033525-KF22-E1
Availability:4 to 6 Weeks ARO

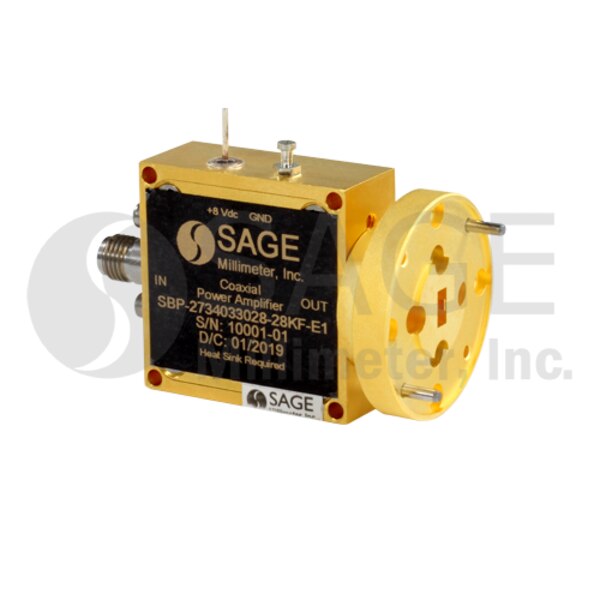

SBP-3334033525-KF22-E1 is a power amplifier with a minimum small signal gain of 35 dB and a nominal P1dB of +25 dBm across the frequency range of 33 to 40 GHz. The DC power supply required for the amplifier is +8 VDC/650 mA. The input and output port configurations are 2.92 mm (F) and WR-22 Uni-Guideâ„¢ waveguide with UG-383/U flange. Other port configurations, such as 2.4 mm connectors, inline or right angle WR-22 waveguides for either the input or output port, are also available under different model numbers.

Your application may require a heatsink. Visit our Heatsink Blog for assistance with choosing an appropriate heatsink for use with this model.
ECCN: 3A001.b.4
Login to View Pricing

Bulk Pricing

Quantity Price
1 - 2 $2,650.00
3 - 4 $2,517.50
5 - 9 $2,391.63

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency33 GHz
Maximum Frequency40 GHz
Gain35 dB
P1dB+25 dBm
Psat+27 dBm
Input Return Loss10 dB
Output Return Loss10 dB
DC Bias+8 VDC/650 mA
RF Input/Output2.92 mm (F) Connector/WR-22 Uni-Guide™ Waveguide
