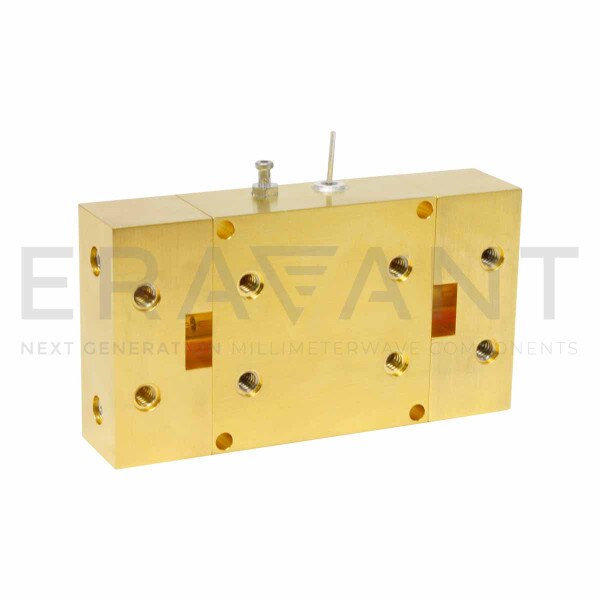

Ka-Band Low Noise Amplifier

33 to 37 GHz, 40 dB Gain, 3.0 dB Noise Figure, Right Angle WR-28 Waveguide
SKU:SBL-3333734030-2828-S1
Availability:1 Week ARO
SBL-3333734030-2828-S1 is a low noise amplifier with a typical small signal gain of 40 dB and a nominal noise figure of 3 dB across the frequency range of 33 to 37 GHz. The DC power requirement for the amplifier is +8 VDC/205 mA. The input and output port configurations are both WR-28 waveguides. Other port configurations, such as K connectors or WR-28 waveguides for either the input or output port, are also available under different model numbers.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 4$1,950.00
5 - 9$1,755.00
10 - 24$1,579.50

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency33 GHz
Maximum Frequency37 GHz
Gain40 dB
Noise Figure3.0 dB
P1dB+10 dBm
Input Return Loss10 dB
Output Return Loss10 dB
DC Bias+8 VDC/205 mA
RF Input/OutputWR-28 Waveguide
