WR-28 Waveguide Bandpass Filter

32 to 38 GHz Passband, 40 dB Rejection from DC to 28 GHz and 40 to 46 GHz, Ka-Band
SKU:SWF-35306340-28-B1
Availability:1 Week ARO

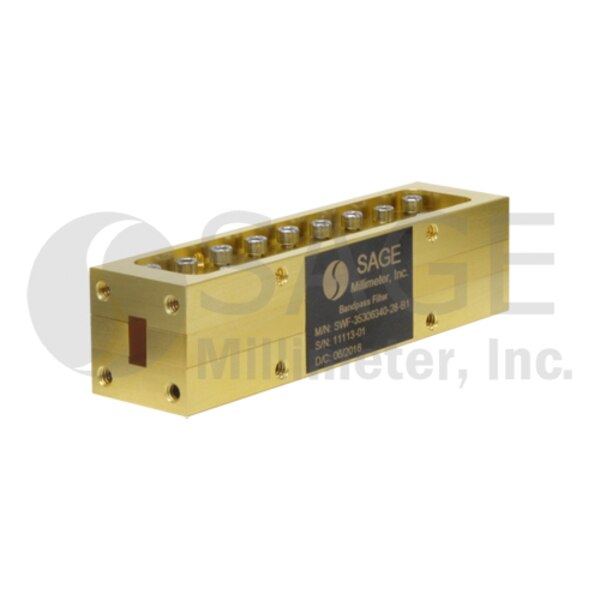

SWF-35306340-28-B1 is a Ka band waveguide bandpass filter with a passband frequency of 32 to 38 GHz and rejection frequencies from DC to 28 GHz and 40 to 46 GHz. The nominal insertion loss of the bandpass filter is 1.8 dB and the typical rejection is 40 dB. Since both low end and high end cut off frequencies can be selected by modifying the design, custom designs are available under different model numbers.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 4$1,700.00
5 - 9$1,530.00
10 - 24$1,377.00

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Passband Frequency32 GHz
Maximum Passband Frequency38 GHz
Minimum Rejection Frequency, Low SideDC
Maximum Rejection Frequency, Low Side28 GHz
Minimum Rejection Frequency, High Side40 GHz
Maximum Rejection Frequency, High Side46 GHz
Rejection40 dB
Waveguide PortWR-28 Waveguide
