WR-22 Waveguide Bandpass Filter

30 to 45 GHz Passband, 40 dB Rejection from DC to 28 GHz and 47 to 90 GHz, Q-Band
SKU:SWF-38315340-22-B1
Availability:IN STOCKPlease contact us if you need more units than what is available online.

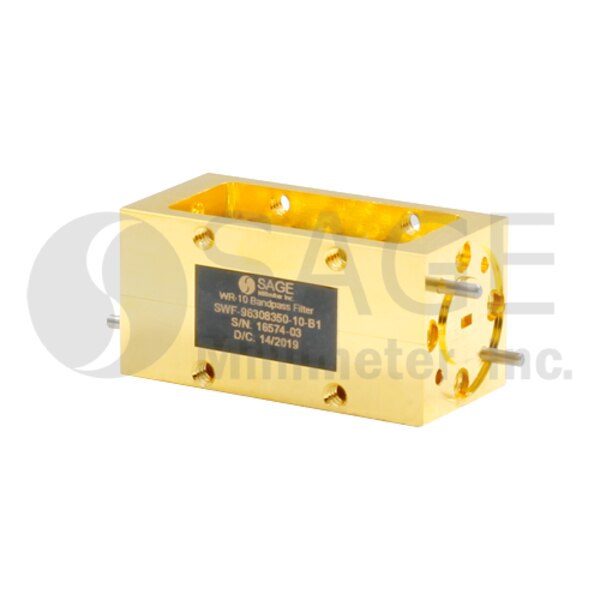

SWF-38315340-22-B1 is a Q band waveguide bandpass filter with a passband frequency of 30 to 45 GHz and rejection frequencies from DC to 28 GHz and 47 to 90 GHz. The nominal insertion loss of the bandpass filter is 2.0 dB and the typical rejection is 40 dB. Since both low end and high end cut off frequencies can be selected by modifying the design, custom designs are available under different model numbers.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 4$1,850.00
5 - 9$1,665.00
10 - 24$1,498.50

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Passband Frequency30 GHz
Maximum Passband Frequency45 GHz
Minimum Rejection Frequency, Low SideDC
Maximum Rejection Frequency, Low Side28 GHz
Minimum Rejection Frequency, High Side47 GHz
Maximum Rejection Frequency, High Side90 GHz
Rejection40 dB
Waveguide PortWR-22 Waveguide
