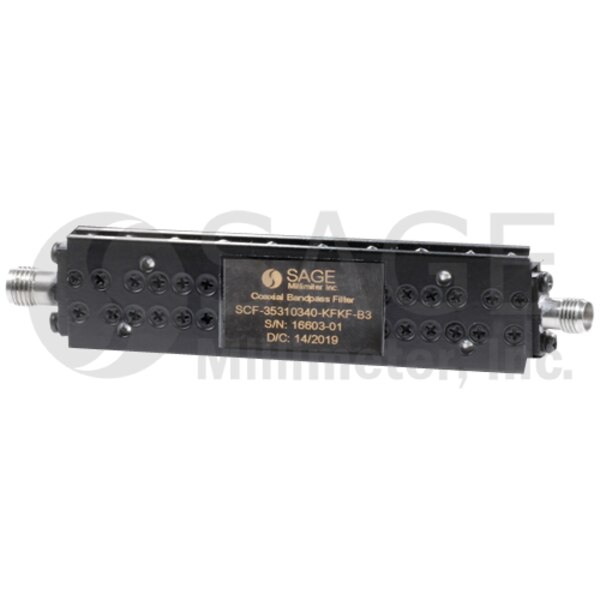

2.92 mm Coaxial Bandpass Filter

30 to 40 GHz, 40 dB Rejection
SKU:SCF-35310340-KFKF-B3
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SCF-35310340-KFKF-B3 is a coaxial bandpass filter with passband frequencies from 30 to 40 GHz and a rejection frequency from 26 to 29.5 GHz and 42 GHz and higher. The filter provides a typical insertion loss of 1.0 dB across its passband and a typical rejection of 40 dB.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 4$1,450.00
5 - 9$1,305.00
10 - 24$1,174.50

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Passband Frequency30 GHz
Maximum Passband Frequency40 GHz
Low Side Rejection40 dB
High Side Rejection40 dB
Return Loss10 dB
Insertion Loss1 dB
Impedance50 Ohms
RF Ports2.92 mm (F)
