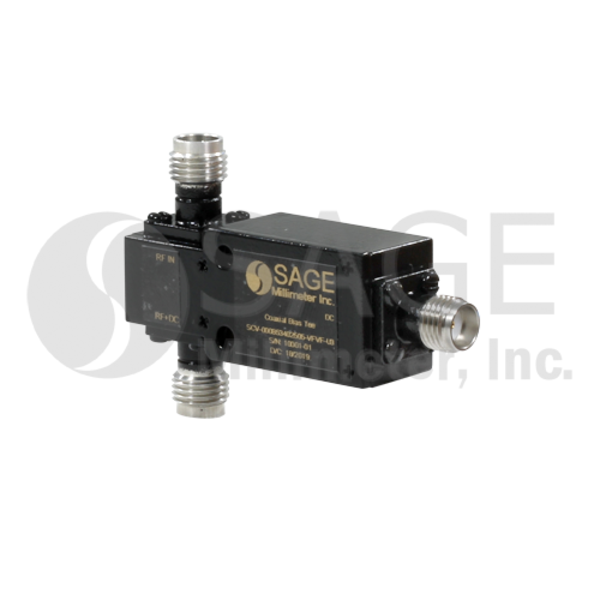

1.85 mm (F) Bias Tee

30 kHz to 85 GHz, 500 mA DC Current, 25 dB Isolation
SCV-000853402505-VFVF-U3 is a bias tee that operates from 30 kHz to 85 GHz. The bias tee offers 4.0 dB typical insertion loss and 7 dB typical return loss. The bias tee can handle up to +25 VDC bias voltage and 500 mA current. The RF ports are equipped with 1.85 mm V(F) connectors. Other connector types are available under different model numbers.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency30 kHz
Maximum Frequency85 GHz
Insertion Loss4 dB
Return Loss7 dB
DC Voltage+25 VDC
DC Current500 mA
Power Handling1 W
Input Port1.85 mm Female
Output Port1.85 mm Female
DC PortSMA Female
