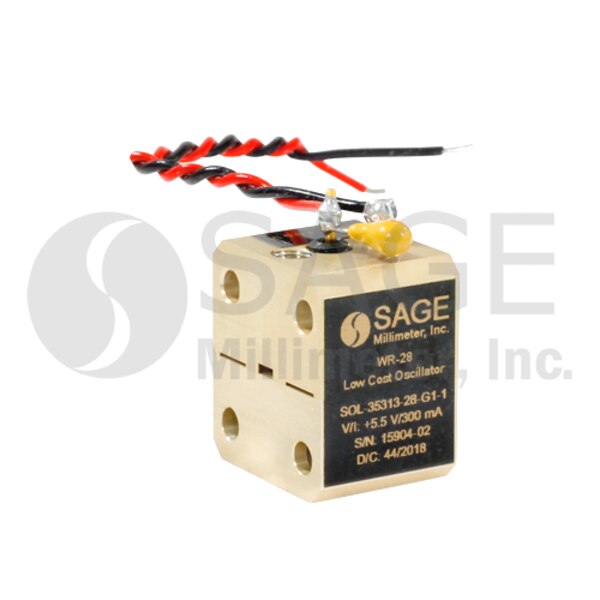

Ka-Band Volume Production Oscillator

30 GHz, ±1.00 GHz Tuning Bandwidth, +12 dBm Output Power, WR-28 Waveguide
SKU:SOL-30312-28-G1
Availability:1 to 2 Weeks ARO
SOL-30312-28-G1 is a volume-production ready, Ka Band Gunn oscillator that utilizes a high performance GaAs Gunn diode and high Q cavity to achieve excellent phase noise and power stability. The oscillator is designed for fixed frequency applications, however, the frequency can be adjusted by ±1.0 GHz using the self-locking set screw provided.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 9 $780.00
10 - 24 $702.00
25 - 49 $631.80

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Center Frequency30 GHz
Output Power+12 dBm
Mechanical Tuning Range±1000 MHz
Varactor Tuning Range-
Phase Noise-95 dBc/Hz @ 100 KHz offset
Bias+5.5 VDC/350 mA
Varactor Tuning Voltage Range-
RF PortWR-28 Waveguide
