W-Band Lens Corrected Antenna

This model may be purchased with optional antenna testing services.
A gain measurement test is offered under service number FTA-WR10GAIN-06D.
A 2D pattern measurement test is offered under service number FTA-WR10PATT-06D.

CLICK HERE to read more about our antenna measurement capabilities.

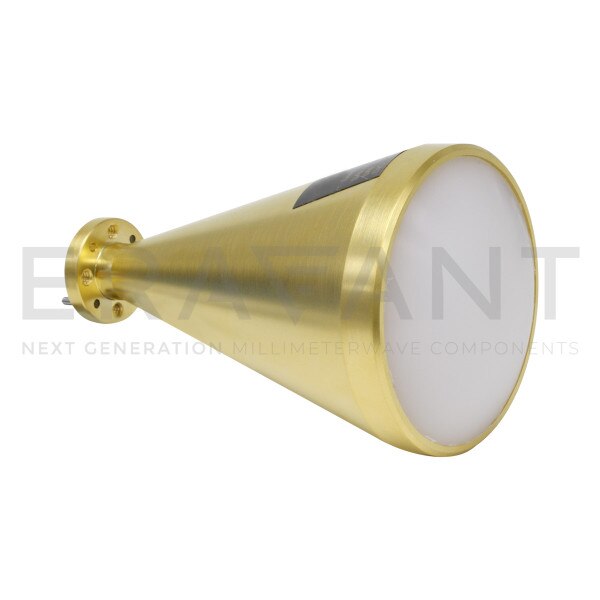

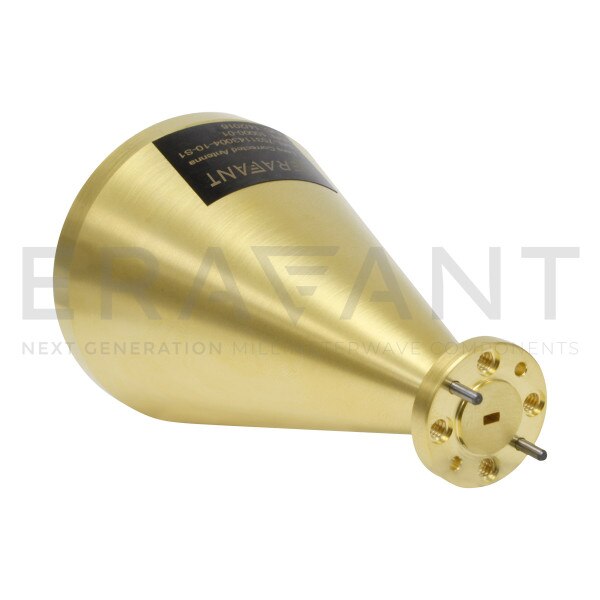

SAL-7531143004-10-S1 is a W-band lens corrected antenna that operates from 75 to 110 GHz. At center frequency, the antenna delivers 30 dBi nominal gain, 4.3 degrees typical half power beamwidth on the E-plane and 5.3 degrees typical half power beamwidth on the H-plane. The antenna employs a low loss lens to offer excellent aperture efficiency and low sidelobe levels. The lens corrected antenna is equipped with a standard WR-10 waveguide and UG-387/U-M flange as its input port. It supports linear polarized waveforms.
