U-Band Lens Corrected Antenna

30 dBi Gain, 40 to 60 GHz, 0.188" Diameter Circular Waveguide
Availability:IN STOCKPlease contact us if you need more units than what is available online.

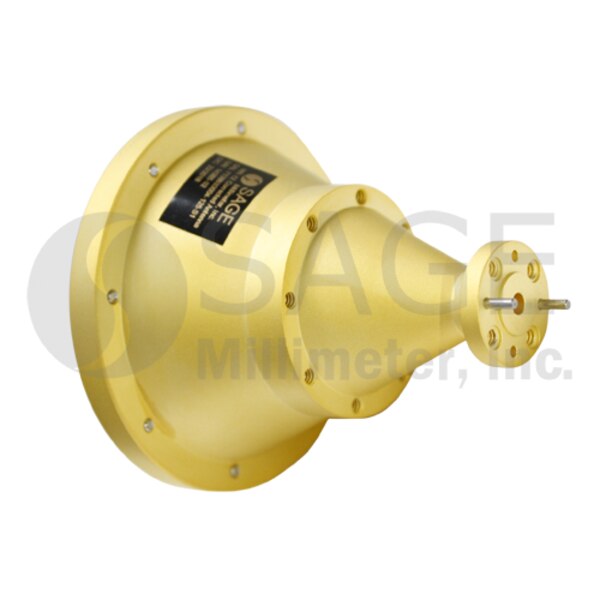

SAL-4036033005-188-S1 is a U-band lens corrected antenna that operates from 40 to 60 GHz. At a center frequency of 50 GHz, the antenna delivers 30 dBi nominal gain, 4.3 degrees typical half power beamwidth on the E-plane, and 5.2 degrees typical half power beamwidth on the H-plane. The antenna employs a low loss lens to offer excellent aperture efficiency and low sidelobe levels. The lens corrected antenna is equipped with a 0.188" diameter circular waveguide and UG-383/U-M flange as its input port. It supports both linear and circular polarized waveforms.
Login to view pricing

Bulk Pricing

Quantity Price
1 - 9 $830.00
10 - 24 $747.00
25 - 49 $672.30

Bulk Availability


Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency40 GHz
Maximum Frequency60 GHz
Gain30 dBi
3 dB Beamwidth (E-plane, H-plane)4.3°, 5.2°
Return Loss25 dB
PolarizationLinear and Circular
Antenna Port0.188" Dia Circular WG
