K-Band Sector Rectangular Lens Antenna

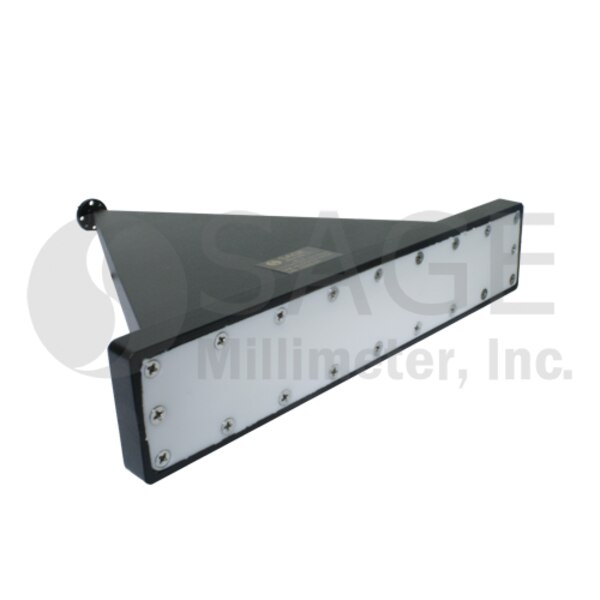

SAK-AL233243-42-C2 is a custom built, K-band sector rectangular lens corrected antenna that delivers a nominal half-power beam width of 10 degrees vertically and 2.7 degrees horizontally and 30.5 dBi nominal gain at a center frequency of 24.0 GHz. The sidelobe level of the antenna is -20 dB or better and the typical return loss is 15 dB. The standard model is equipped with a WR-42 rectangular waveguide and a UG-595/U flange as its RF port. It supports linear polarized waveforms.
