F-Band Omnidirectional Antenna

This model may be purchased with optional antenna testing services.
A gain measurement test is offered under service number FTA-WR08GAIN-ODA.
A 2D pattern measurement test is offered under service number FTA-WR08PATT-ODA.

CLICK HERE to read more about our antenna measurement capabilities.

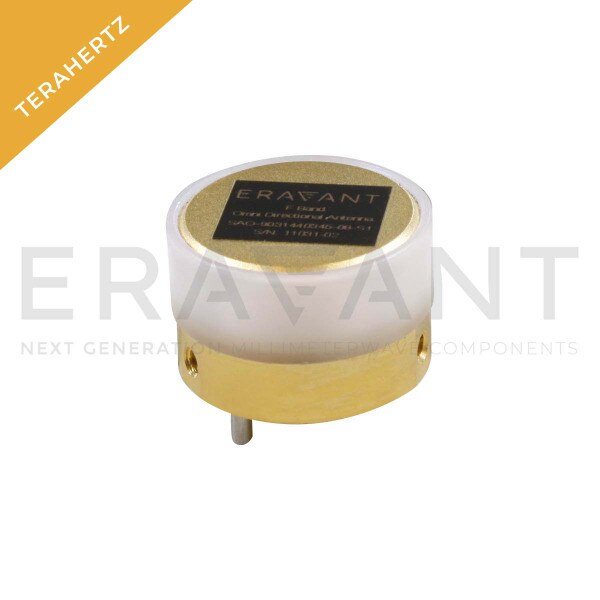

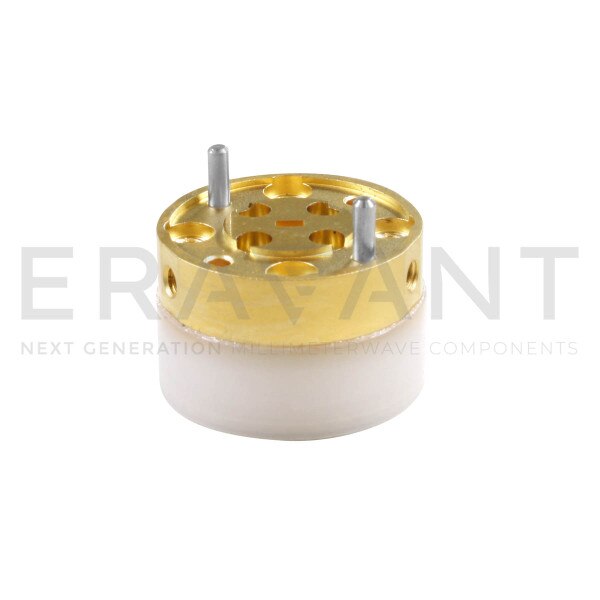

SAO-9031440345-08-S1 is a full band, WR-08 omnidirectional antenna that operates between 90 and 140 GHz. This vertically polarized antenna offers 360 degrees azimuth coverage with a 3 dBi typical gain and ±3 dB angular gain flatness. The antenna features a half power beamwidth of 30 degrees in the vertical direction. The input port of the antenna is equipped with a WR-08 waveguide with UG-387/U-M anti-cocking flange.
