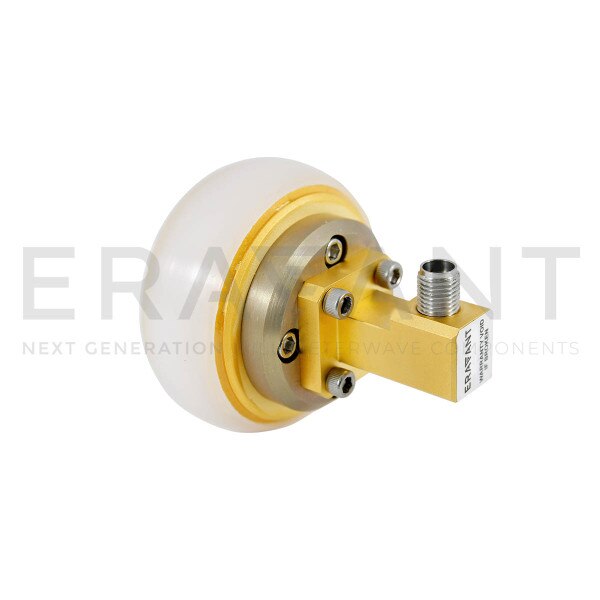

Ka-Band Omnidirectional Antenna

3 dBi Gain, 24 to 40 GHz, 2.92 mm (F), Right Angle
SKU:SAO-2434030345-KF-R1
SAO-2434030345-KF-R1 is a full band, Ka band omnidirectional antenna that covers the frequency range of 24 and 40 GHz. This vertically polarized antenna offers 360 degrees azimuth coverage with a 3 dBi typical gain and ±1 dB nominal gain flatness. The antenna features a half power beamwidth of 45 degrees in its vertical direction. The RF port of the antenna is equipped with right angle K(F) coaxial connector. The version with an end launch K(F) connector is offered under model number, SAO-2434030345-KF-E1.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency24 GHz
Maximum Frequency40 GHz
Gain3 dBi
Azimuth360°
3 dB Beamwidth, Vertical45°
Return Loss8 dB
InputRight Angle 2.92 mm (F)
