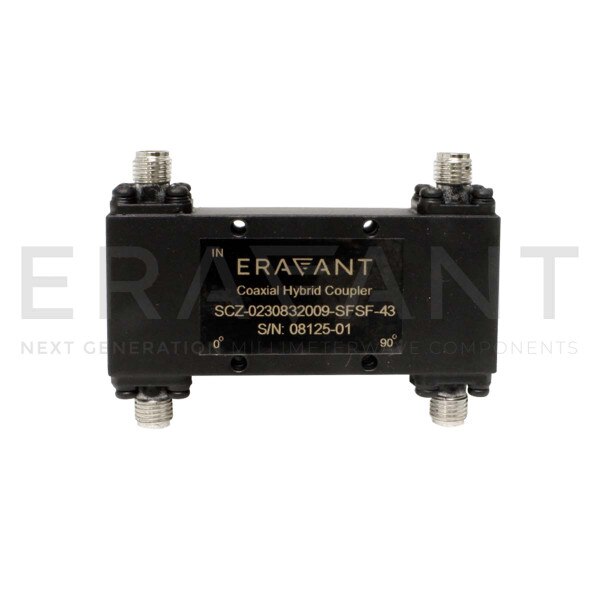

90 Degree Coaxial Hybrid Coupler

2 to 8 GHz, SMA (F) Input/Output Ports, 3 dB Coupling
SKU:SCZ-0230832009-SFSF-43
SCZ-0230832009-SFSF-43 is a coaxial 90-degree hybrid coupler that covers the frequency range of 2.0 to 8.0 GHz. The nominal coupling is 3 dB and the typical insertion loss is 0.8 dB. The typical isolation of the coupler is 20 dB. The RF connectors of the coupler are female SMA connectors. The power handling of the coupler is 50 watts maximum. Other configurations, such as different connectors for input and output, are available under different model numbers.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency2 GHz
Maximum Frequency8 GHz
Insertion Loss0.8 dB
Coupling3 dB
Return Loss17 dB
Impedance50 Ohms
RF PortsSMA (F)
