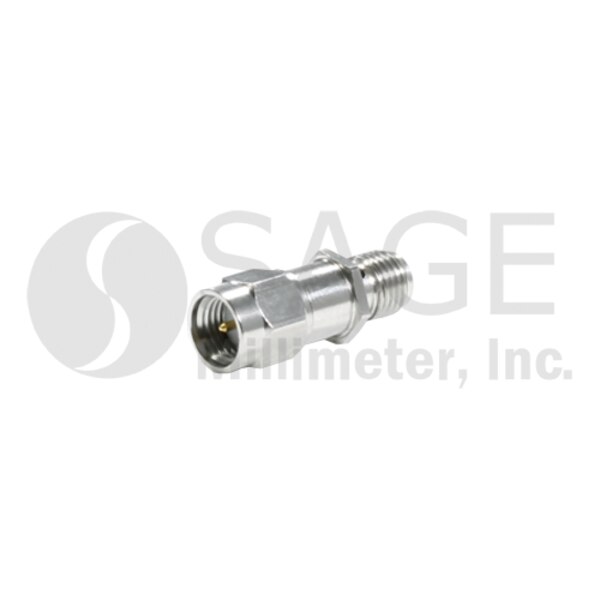

Coaxial Fixed Attenuator

3 dB Attenuation, 2.92 mm (M) to (F), DC to 40 GHz, 2 Watt
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SCA-03-KMKF-S9 is a 3 dB coaxial attenuator that is used in millimeterwave systems and operates from DC to 40 GHz. The attenuator has a typical attenuation value of 3 dB across the frequency range. While the attenuator is designed and fabricated for full 2.92 mm coaxial band applications, the attenuation value of this model will have a wide range due to its broadband coverage. Various attenuation values are available under different model numbers.
Login to View Pricing

Bulk Pricing

1 - 24$220.00
25 - 49$198.00
50 - 99$178.20

Bulk Pricing

Login to View Pricing

Technical Details

Minimum FrequencyDC
Maximum Frequency40 GHz
Attenuation3 dB
Return Loss18 dB
Power Handling2 W
Connector 12.92 mm Male
Connector 22.92 mm Female
