Ka-Band Mechanically Tuned Gunn Oscillator

29 GHz, ±2.00 GHz Tuning Bandwidth, +20 dBm Output Power, WR-28 Waveguide
Availability:1 to 2 Weeks ARO

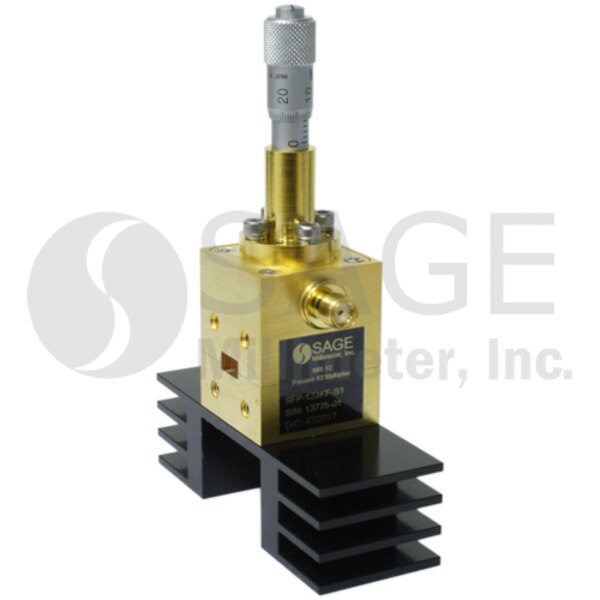

SOM-29304320-28-M1 is a Ka-band, mechanically tuned Gunn oscillator that utilizes a high performance GaAs Gunn diode and proprietary cavity design to deliver +20 dBm typical power. The oscillator features a frequency tuning range of 27 to 31 GHz and delivers low AM/FM noise and harmonic emissions. Compared to its counterparts, such as multiplier based sources, the Gunn oscillator is a lower cost and cleaner source. The Gunn oscillator’s frequency can also be tuned by varying the bias voltage, which is useful for phase-locking and electrical-tuning applications. The Gunn oscillator is equipped with a self-locking set screw for frequency trimming. Models with a micrometer for lab and test bench applications are available under a different model number. The performance of the oscillator can be further enhanced by adding an optional isolator, Gunn oscillator modulator/regulator and temperature heater.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Center Frequency29 GHz
Output Power+20 dBm
Mechanical Tuning Range±2 GHz
Bias Tuning Range (+4.5 to +5.5 VDC)±10 MHz
Bias+4.5 VDC/850 mA
RF PortWR-28 Waveguide
Mechanical TuningSelf-Locking Set Screw
