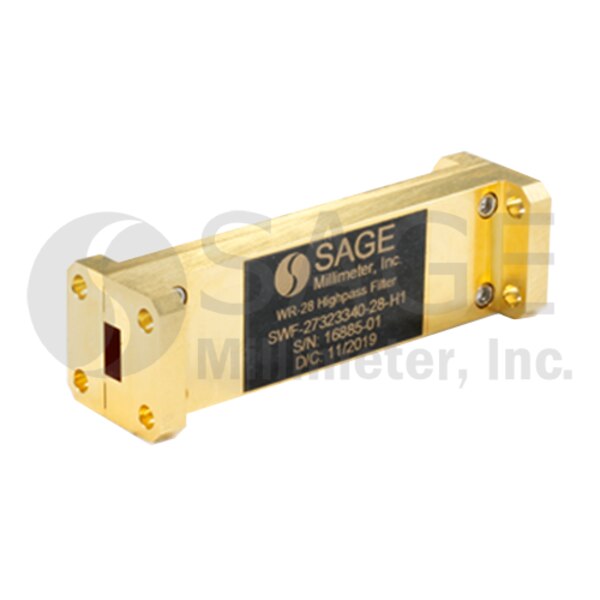

WR-28 Waveguide Highpass Filter

SWF-28324340-28-H1 is a Ka band waveguide highpass filter with a passband frequency of 28 GHz and higher and a rejection frequency from DC to 24 GHz. The filter provides a nominal insertion loss of 0.5 dB across its passband and a typical rejection of 40 dB. Since the low end cutoff frequency can be changed by modifying the design, custom designs can be offered under different model numbers. For quantities above 10 pieces, please contact us or call (424) 757-0168.
