WR-34 Waveguide Lens Corrected Antenna

This model may be purchased with optional antenna testing services.
A gain measurement test is offered under service number FTA-0400GAIN-06D.
A 2D pattern measurement test is offered under service number FTA-0400PATT-06D.

CLICK HERE to read more about our antenna measurement capabilities.

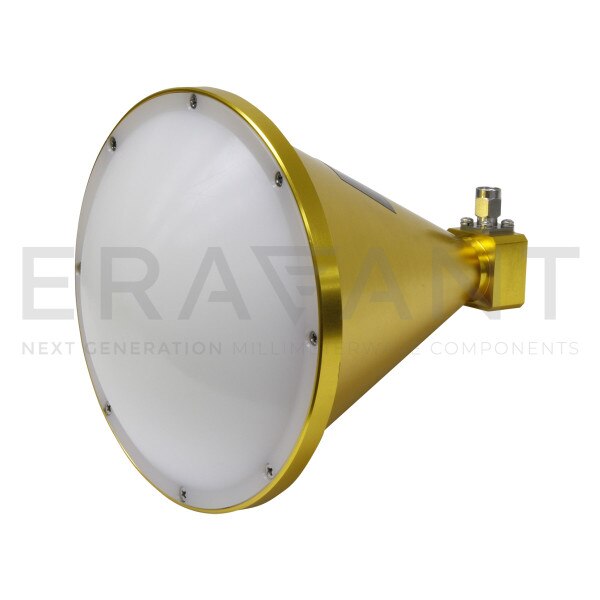

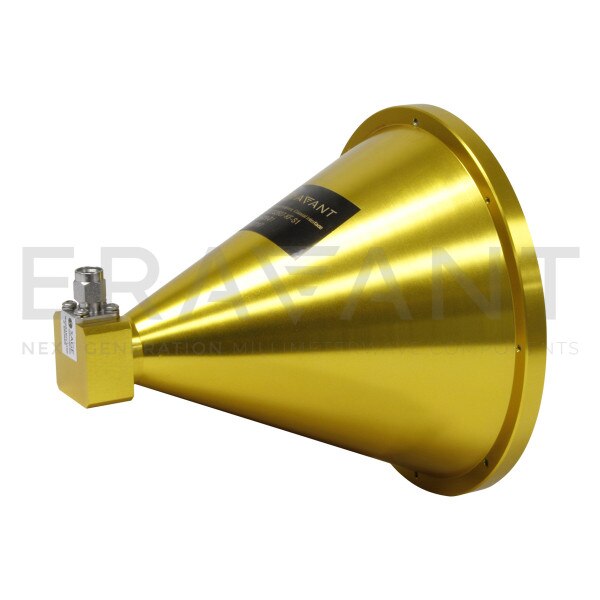

SAL-2532732607-KM-S1 is a WR-34 band, lens corrected antenna that operates from 25 to 27 GHz. At a center frequency of 26 GHz, the antenna delivers 27 dBi nominal gain and 7 degrees typical half power beamwidth. The antenna employs a low loss lens to offer excellent aperture efficiency and low sidelobe levels. The lens corrected antenna is equipped with a male K coaxial connector as its input port. It supports linear polarized waveforms.
