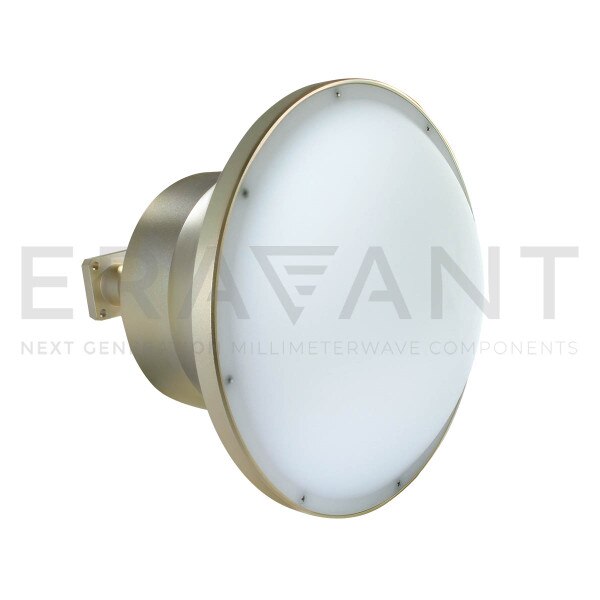

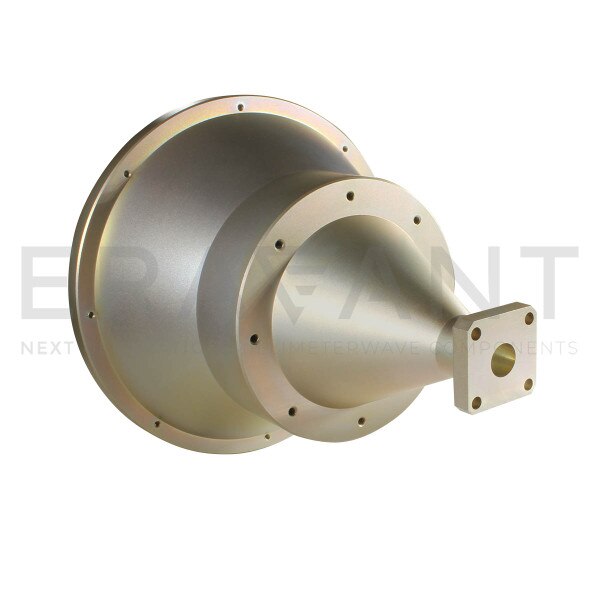

Ka-Band Lens Corrected Antenna

27 dBi Gain, 25 to 27 GHz, 0.315" Diameter Circular Waveguide
SKU:SAL-2532732706-315-S1
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SAL-2532732706-315-S1 is a lens corrected antenna that operates from 25 to 27 GHz. At the frequency of 26 GHz, the antenna delivers 27 dBi nominal gain, 6 degrees E-plane, and 7 degrees H-plane half power beamwidth, respectively. The antenna employs a low loss lens to offer excellent aperture efficiency and low sidelobe levels. The lens corrected antenna is equipped with a 0.315" diameter circular waveguide and UG-1530/U flange as its input port. It supports both linear and circular polarized waveforms.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency25 GHz
Maximum Frequency27 GHz
Gain27 dBi
3 dB Beamwidth (E-plane, H-plane)6°, 7°
Return Loss20 dB
PolarizationLinear and Circular
Antenna Port0.315" Dia Circular WG
