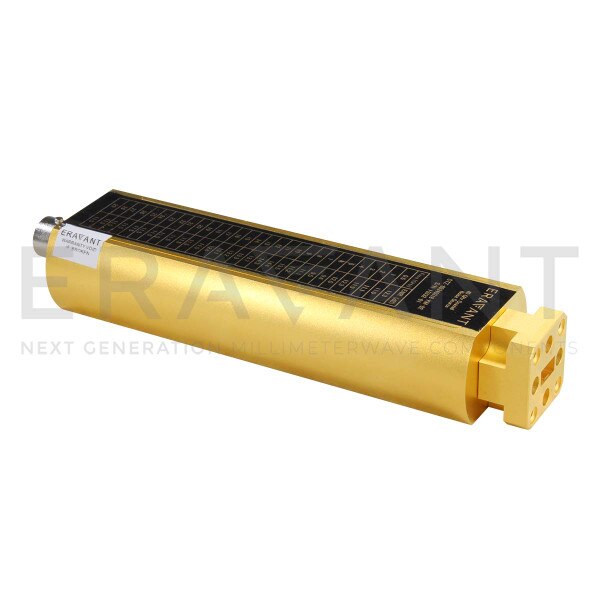

WR-28 Noise Source

26.5 to 40 GHz, 18 dB ENR, WR-28 Uni-Guide™ Waveguide
SKU:STZ-28-02
STZ-28-02 is a WR-28 noise source that delivers 18 dB nominal ENR across the frequency range of 26.5 GHz to 40 GHz. The RF port uses a WR-28 Uni-Guide™ with UG-599/U Flange and the DC bias port is equipped with a BNC (F) connector, which is readily available for standard noise figure meter and noise figure analyzer interfaces. The noise source is designed with improved port return loss for more reliable and accurate noise figure measurements. The noise source can work also in either CW or pulse AM mode up to 1 kHz depending on the driving signal. Added features, such as TTL triggering signal port used in automatic test systems or toggle switches to manually turn the module on and off can be added as an option under different part numbers.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 4 $4,850.00
5 - 9 $4,608.00
10 - 24 $4,377.00

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency26.5 GHz
Maximum Frequency40 GHz
ENR18 dB
ENR Flatness±2 dB
AM Modulation Rate1 kHz
Return Loss15 dB
DC Bias+28VDC/30mA
RF OutputWR-28 Uni-Guide™ Waveguide
