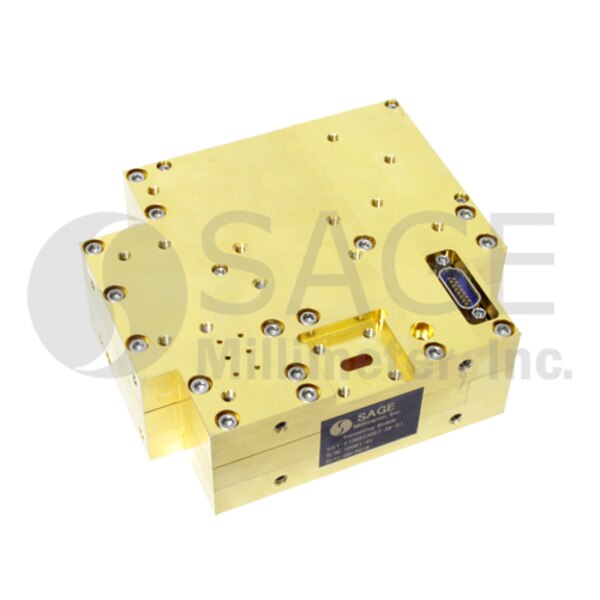

Integrated Transmitter Module Without Antenna

26.8 GHz, 23 dB IF to TX Linear Gain, Space Qualified
SKU:SST-2730223027-28-S1
Availability:Contact Us for Quote
SST-2730223027-28-S1 is a Ka Band compact transmitter module operating at 26.8 GHz. This product is designed and manufactured for small satellite applications. The module incorporates a phase locked oscillator to convert 1.0 GHz signal to 26.8 GHz signal. A robust filtering system greatly reduces the harmonic and spurious levels, making the module a great choice for ground, ground to satellite and satellite to satellite communication applications.
ECCN: EAR99
Login to view pricing

Technical Details

SpecificationsTX Frequency: 26.7 to 26.9 GHz
TX Output P1dB: +29 dBm
IF Frequency Range: 0.9 to 1.1 GHz
IF to TX Linear Gain: 23 dB
IF Input VSWR: 1.5:1
Harmonics: -50 dBc
Spurious: -60 dBc
DC Supply Voltage: +8 Vdc/1.5 A
