Ka-Band Power Amplifier with Uni-Guide™

26.5 to 41 GHz, 25 dB Gain, +30 dBm P1dB, WR-28 Waveguide, 2.92 mm (F)
SKU:SBP-2734132530-28KF-E1-HR
Availability:Contact Us for Quote

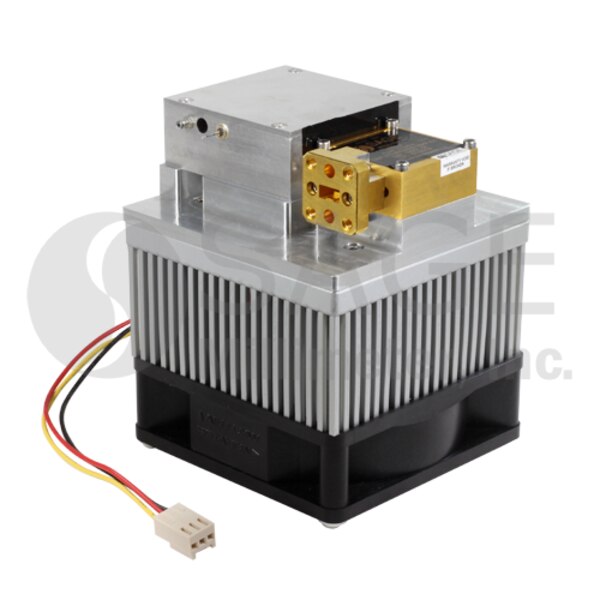

SBP-2734132530-28KF-E1-HR is a power amplifier with a typical small signal gain of 25 dB and a nominal P1dB of +30 dBm across the frequency range of 26.5 to 41 GHz. The DC power requirement for the amplifier is +8 VDC/4 A. The mechanical configuration is an inline structure with WR-28 Uni-Guide™ waveguide as its input port and K(F) connector as its output port. Other port configurations, such as K connectors and WR-28 waveguides for either the input or output port, are also available under different model numbers.
ECCN: 3A001.b.4
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency26.5 GHz
Maximum Frequency41 GHz
Gain25 dB
P1dB+30 dBm
Psat+32 dBm
Input Return Loss10 dB
Output Return Loss10 dB
DC Voltage+8 VDC
DC Bias4000 mA
RF Input/OutputWR-28 Uni-Guide™ Waveguide/2.92 mm (F)
ConfigurationHeatsink Included
