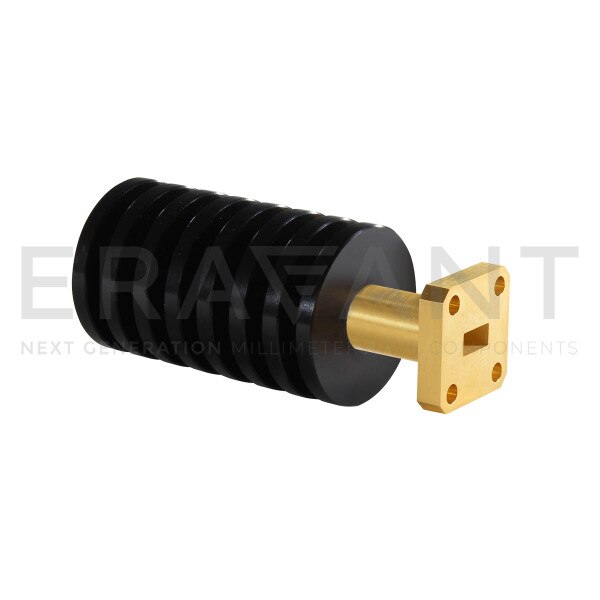

Ka-Band Fixed Waveguide Termination Load

26.5 to 40 GHz, 5.0 W Power Handling, WR-28 Waveguide
SKU:SWL-2837-S1
SWL-2837-S1 is a medium power, Ka-Band termination load that covers the frequency range of 26.5 to 40 GHz. The termination load exhibits a typical return loss of 32 dB. It is designed and manufactured to offer a good match for system applications. Custom levels of power handling are available under different model numbers.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 9 $550.00
10 - 24 $495.00
25 - 49 $445.50

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency26.5 GHz
Maximum Frequency40 GHz
Power Handling, Watts5.0 W
Power Handling, dBm37 dBm
Load TypeFixed
Waveguide PortWR-28 Waveguide
