Ka-Band Orthomode Transducer, Limited Run

26.5 to 40 GHz, 40 dB Isolation, 35 dB Cross Polarization, 0.280" x 0.280" Square Waveguide Antenna Port
Availability:IN STOCKPlease contact us if you need more units than what is available online.
This is a Limited Run model, so inventory may not be restocked. Customers who anticipate long-term requirements should consider SAT-343-28028-S1 as an alternative solution. Read more about Limited Run Products here.

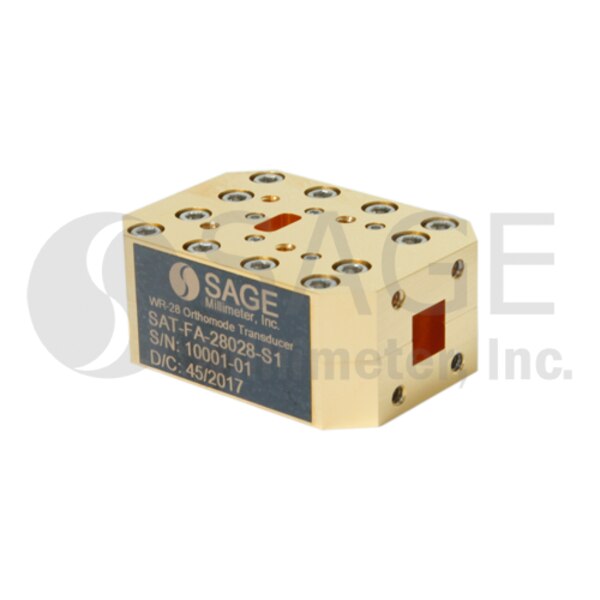

SAT-FA-28028-S1 is a WR-28 orthomode transducer (OMT) operating between 26.5 and 40 GHz. It separates a circular or elliptical polarized waveform into two linear, orthogonal waveforms or combines two linear polarized waveforms into one circular or elliptical polarized waveform. The OMT shows high port isolation and high cross polarization cancellation while providing a low insertion loss. The OMT is configured with a 0.280" x 0.280" square waveguide for the antenna port and two WR-28 waveguides for the horizontal and vertical ports. All ports have standard UG-599/U flanges.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency26.5 GHz
Maximum Frequency40 GHz
Insertion Loss, Antenna to V Port0.5 dB
Insertion Loss, Antenna to H Port0.5 dB
Isolation40 dB
Cross Polarization35 dB
Antenna Port0.280" x 0.280" Square WG
Horizontal and Vertical PortsWR-28 WG
