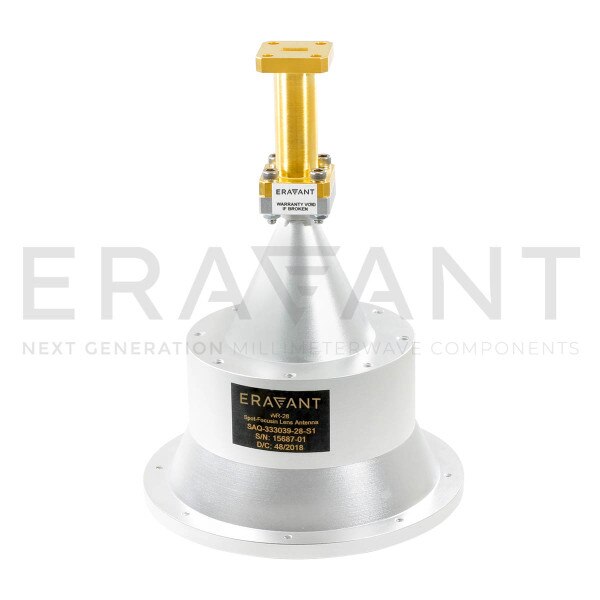

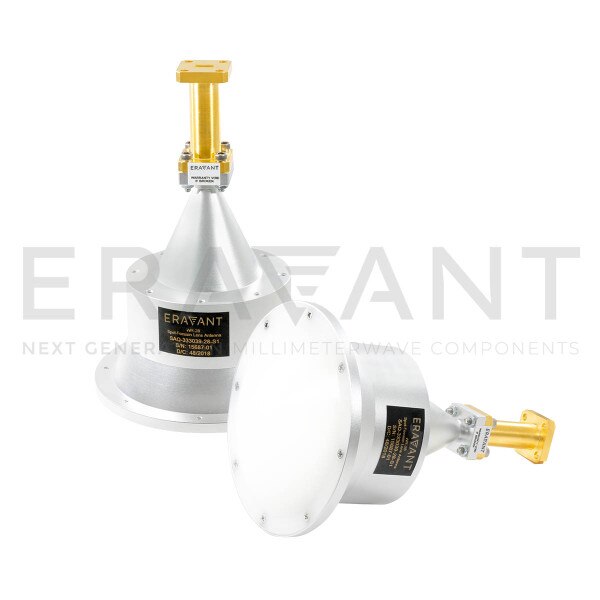

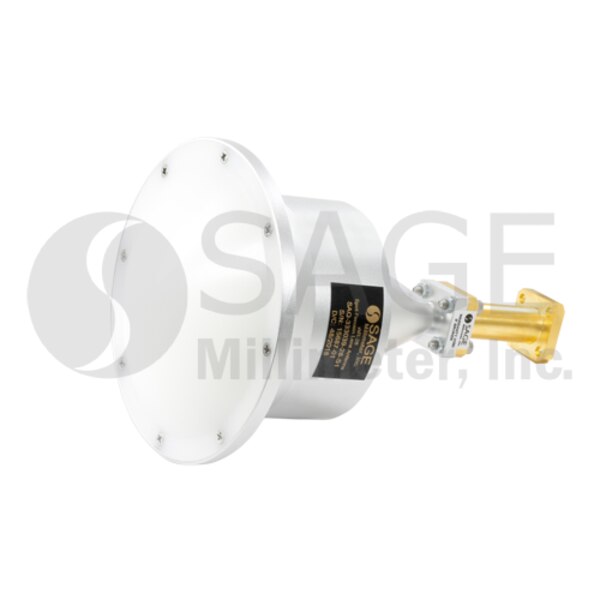

Ka-Band Spot-Focusing Lens Antenna

26.5 to 40 GHz, 3.94" Focal Length, 1.2" Spot Size, WR-28 Waveguide
SKU:SAQ-333039-28-S1
SAQ-333039-28-S1 is a Ka-band spot-focusing lens antenna that delivers a typical peak to first null spot size of 1.2” at the focal length of 3.94” (10 cm), and a typical return loss of 15 dB across the full WR-28 waveguide operating bandwidth. The antenna is equipped with a WR-28 waveguide and UG-599/U flange as its antenna port. It only supports linear polarized waveforms. A configuration with a Ø 0.315” circular waveguide as the antenna port is offered under model SAQ-333039-315-S1, which can support both linear and circular polarized waveforms. For the intended application, it is recommended that customers purchase spot-focusing antennas (SAQ Series) in a pair of two (Qty. 2).
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Center Frequency33.25 GHz
Focal Length3.94"
Spot Size1.2"
PolarizationLinear
Antenna PortWR-28 Waveguide
