Ka-Band Fixed Termination Load, Limited Run

26.5 to 40 GHz, 250 W Power Handling, WR-28 Waveguide
SKU:SWL-2854-S8-2
Availability:IN STOCKPlease contact us if you need more units than what is available online.
This is a Limited Run model, so inventory may not be restocked. Customers who anticipate long-term requirements should consider SWL-2854-S8 as an alternative solution. Read more about Limited Run Products here.

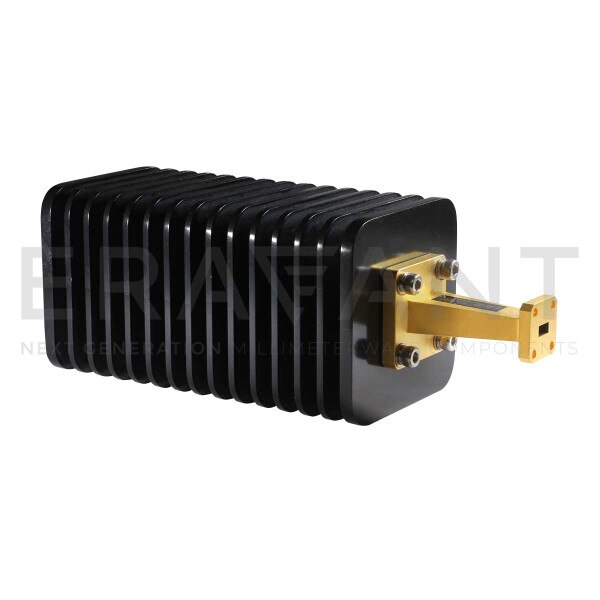

SWL-2854-S8-2 is a high power, Ka-Band termination load that covers the frequency range of 26.5 to 40 GHz. The termination load exhibits a typical return loss of 22 dB and 250 Watts power handling capacity. It is designed and manufactured to offer a good match for high power test lab and system applications. Custom levels of power handling are offered under different model numbers.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 4 $1,100.00
5 - 9 $990.00
10 - 24 $891.00

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency26.5 GHz
Maximum Frequency40 GHz
Power Handling, Watts250 W
Power Handling, dBm54 dBm
Return Loss22 dB
Load TypeFixed
Waveguide PortWR-28 Waveguide
