X2 Active Frequency Multiplier

26.5 to 40 GHz, +20 dBm Output Power, WR-28 Waveguide, Ka-Band
SKU:SFA-282SF-S1
Availability:IN STOCKPlease contact us if you need more units than what is available online.

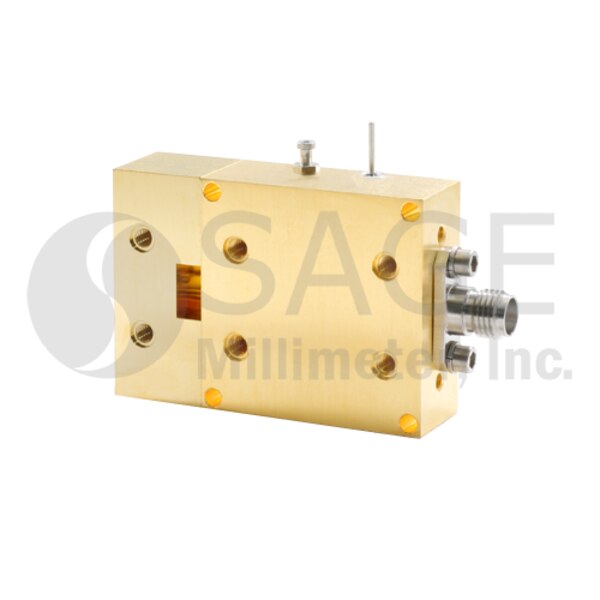

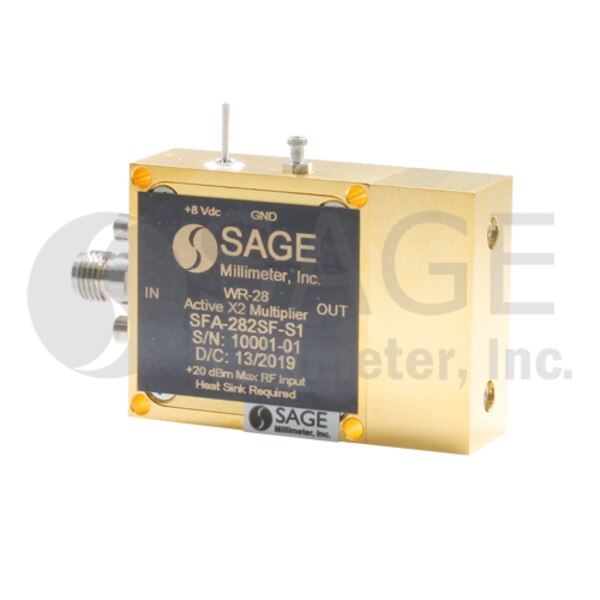

SFA-282SF-S1 is an active X2 frequency multiplier. The multiplier has an input frequency of 13.25 to 20 GHz with a typical input power of +5 dBm and an output frequency of 26.5 to 40 GHz with a typical output power of +20 dBm. The multiplier also has a typical harmonic suppression of -20 dBc. The DC power requirement for the multiplier is +8 VDC/420 mA. The input port is a female SMA connector and the output is a WR-28 waveguide with a UG-599/U flange. It is a right angle configuration. Other port configurations, such as in-line configurations, are available under different model numbers.

Your application may require a heatsink. Visit our Heatsink Blog for assistance with choosing an appropriate heatsink for use with this model.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 2 $2,800.00
3 - 4 $2,660.00
5 - 9 $2,527.00

Bulk Availability

QuantityAvailability
1 - 2In Stock

Bulk Pricing

Login to view pricing

Technical Details

Minimum Output Frequency26.5 GHz
Maximum Output Frequency40 GHz
Output Power+20 dBm
Minimum Input Frequency13.25 GHz
Maximum Input Frequency20 GHz
Input Power+5 dBm
DC Bias+8 VDC/420 mA
Output PortWR-28 WG
Input PortSMA (F)
