High Power Full Band Junction Isolator

26.5 to 40 GHz, 17 dB Isolation, WR-28 Waveguide, Ka-Band
SKU:SNF-28-I5
Availability:IN STOCKPlease contact us if you need more units than what is available online.

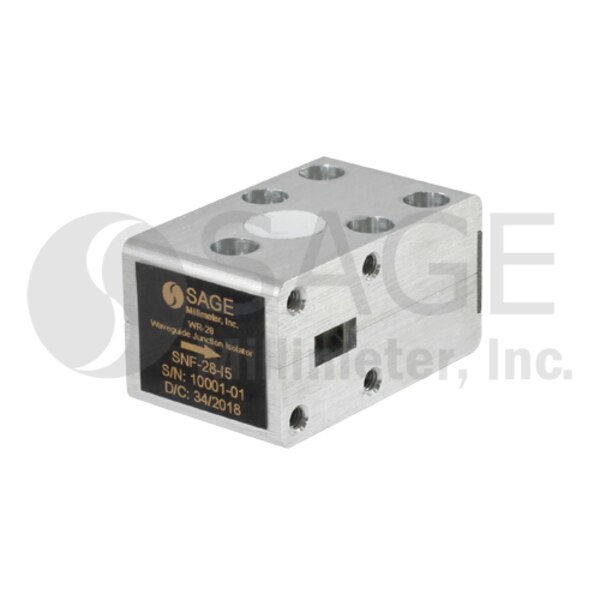

SNF-28-I5 is a Ka band, full waveguide band junction isolator that covers the frequency range of 26.5 to 40 GHz. The full waveguide band isolator is designed and manufactured to provide a typical insertion loss of 0.50 dB with good flatness. Compared to a Faraday isolator, it offers a much shorter insertion length for system integration. The isolator also offers a moderate isolation of 17 dB and a forward power handling of 25 Watts. The input and output ports are WR-28 waveguides with UG-599/U flanges.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency26.5 GHz
Maximum Frequency40.0 GHz
Insertion Loss0.50 dB
Isolation17 dB
Return Loss15 dB
Forward Power Handling25 W
Reverse Power Handling10 W
RF PortWR-28 Waveguide
Device TypeIsolator
