4-Way In-line Power Divider, Limited Run

26.5 to 35 GHz, 25 dB Port Isolation, WR-28 Waveguide,Ka-Band
SKU:SWP-27335304-28-E1
Availability:IN STOCKPlease contact us if you need more units than what is available online.
This is a Limited Run model, so inventory may not be restocked. Customers who anticipate long-term requirements should consider SWP-27340304-28-E1-3 as an alternative solution. Read more about Limited Run Products here.

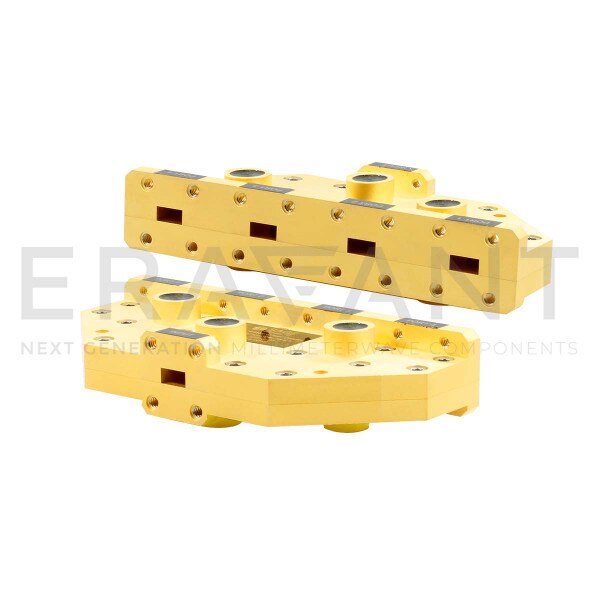

SWP-27335304-28-E1 is a Ka band, 4-way in-line waveguide power divider that operates across the frequency range of 26.5 to 35 GHz. The power divider offers a typical insertion loss of 0.5 dB at each output port and a typical isolation of 20 dB. The ports are well balanced and in phase for either power dividing or power combining applications across the specified frequency range. Standard configurations are available under different model numbers
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 4 $1,350.00
5 - 9 $1,215.00
10 - 24 $1,093.50

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency26.5 GHz
Maximum Frequency35 GHz
Insertion Loss0.5 dB
Port Isolation25 dB
Amplitude Imbalance±0.4 dB
Port VSWR-
Power Division4 Way
ConfigurationIn-line (180°)
Input/Output PortsWR-28 WG
