WR-28 Waveguide Highpass Filter

26.5 GHz and Higher Passband, 40 dB Rejection from DC to 22.5 GHz, Ka-Band
Availability:IN STOCKPlease contact us if you need more units than what is available online.

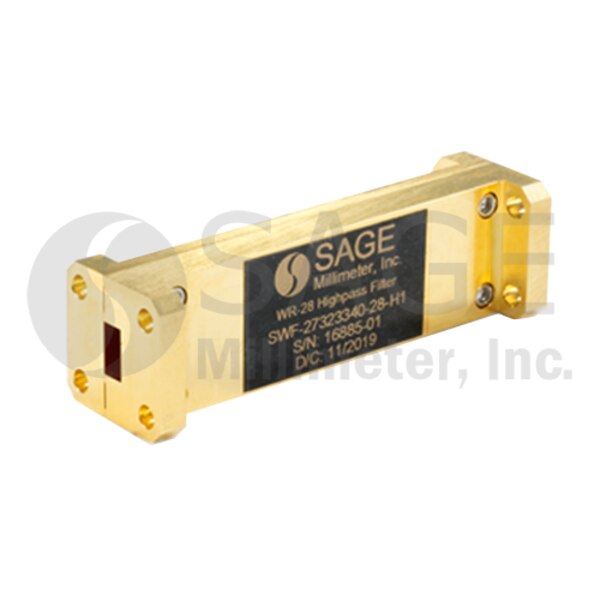

SWF-27323340-28-H1 is a Ka band, waveguide highpass filter with a passband frequency of 26.5 GHz and higher and a rejection frequency from DC to 22.5 GHz. The filter provides a nominal insertion loss of 0.5 dB across its passband with a low ripple and a typical rejection of 40 dB. Since the low end cutoff frequency can be changed by modifying the design, custom designs can be offered under different model numbers. For quantities above 10 pieces, please contact us or call (424) 757-0168.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Passband Frequency26.5 GHz
Passband Insertion Loss0.5 dB
Minimum Rejection FrequencyDC
Maximum Rejection Frequency22.5 GHz
Rejection40 dB
Waveguide PortWR-28 Waveguide
