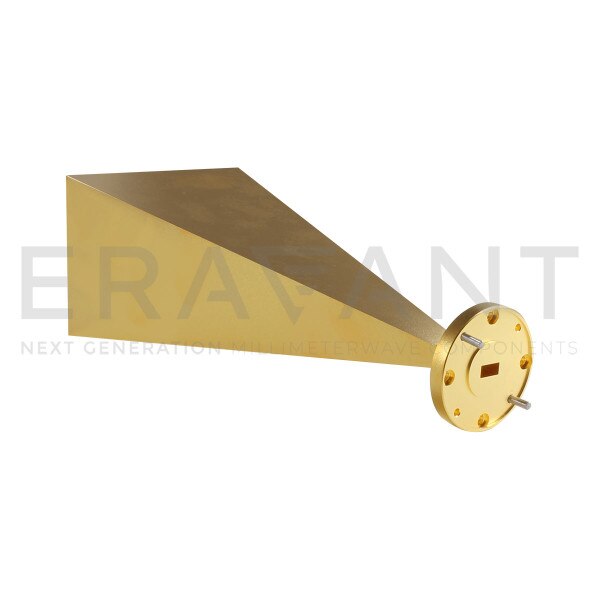

WR-19 Waveguide Rectangular Horn Antenna

25 dBi Gain, 40 to 60 GHz, U-Band
SKU:SAR-2507-19-S2
Availability:3 Days ARO
SAR-2507-19-S2 is a U-band pyramidal horn antenna that operates from 40 to 60 GHz. The antenna offers 25 dBi nominal gain and a typical half power beamwidth of 9 degrees on the E-plane and 10 degrees on the H-plane. The antenna supports linear polarized waveforms. The input of this antenna is a WR-19 waveguide with UG-383/U-M flange.
ECCN: EAR99
Login to view pricing

Bulk Pricing

QuantityPrice
1 - 9$720.00
10 - 24$648.00
25 +$583.20

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency40 GHz
Maximum Frequency60 GHz
Gain25 dBi
3 dB Beamwidth, E-Plane
3 dB Beamwidth, H-Plane10°
Return Loss23 dB
Antenna PortWR-19 Waveguide
