E-Band Conical Horn Antenna

25 dBi Gain, 68 to 77 GHz, WR-12 Waveguide
Availability:IN STOCKPlease contact us if you need more units than what is available online.
This model may be purchased with optional antenna testing services.
A gain measurement test is offered under service number FTA-WR12GAIN-AA.
A 2D pattern measurement test is offered under service number FTA-WR12PATT-AA.

CLICK HERE to read more about our antenna measurement capabilities.

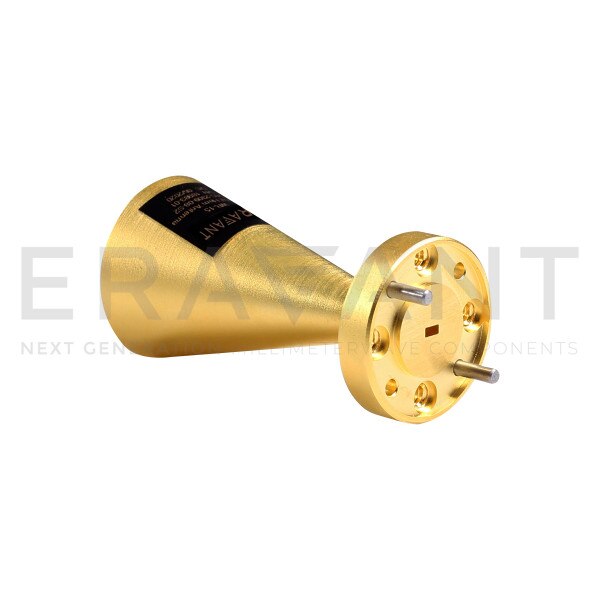

SAC-2507-12-S2 is an E-band conical horn antenna with a WR-12 rectangular waveguide interface that operates from 68 to 77 GHz. The antenna offers 25 dB nominal gain and a typical half power beamwidth of 9 degrees on the E-plane and 10 degrees on the H-plane. The horn also offers typical sidelobes of -18 dB on the E-plane and -28 dB on the H-plane. The conical horn can support linear polarization. The RF connector of this antenna is a WR-12 waveguide with UG-387/U anti-cocking flange.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency68 GHz
Maximum Frequency77 GHz
Gain25 dBi
3 dB Beamwidth, E-Plane
3 dB Beamwidth, H-Plane10°
Return Loss23 dB
Antenna PortWR-12 Waveguide
