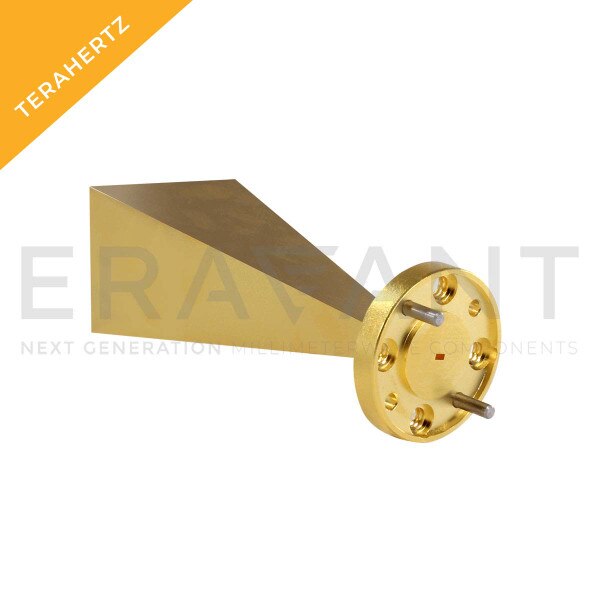

WR-06 Waveguide Rectangular Horn Antenna

25 dBi Gain, 110 to 170 GHz, D-Band
SKU:SAR-2507-06-S2
Availability:4 to 6 Weeks ARO
SAR-2507-06-S2 is a D-band pyramidal horn antenna that operates from 110 to 170 GHz. The antenna offers 25 dBi nominal gain and a typical half power beamwidth of 9 degrees on the E-plane and 10 degrees on the H-plane. The antenna supports linear polarized waveforms. The input of this antenna is a WR-06 waveguide with UG-387/U-M flange.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

Quantity Price
1 - 9 $930.00
10 - 24 $837.00
25 - 49 $753.30

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency110 GHz
Maximum Frequency170 GHz
Gain25 dBi
3 dB Beamwidth, E-Plane
3 dB Beamwidth, H-Plane10°
Return Loss23 dB
Antenna PortWR-06 Waveguide
